JD2945-3 Jupiter Automatic Kilns - Customizable - up to 45" tall
Click on image to enlarge
Furniture Kit
H-J-K294/00 ($875.00)
Twelve 25-1/2" Half Round Shelves, Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, Heat Resistant Gloves and 5 pounds Cone 10 Kiln Wash
Features
Performance
Durability
Ease of Use
Support
Serviceability
Safety
Accessories
Control
Elements & Power
Books
General
Vent

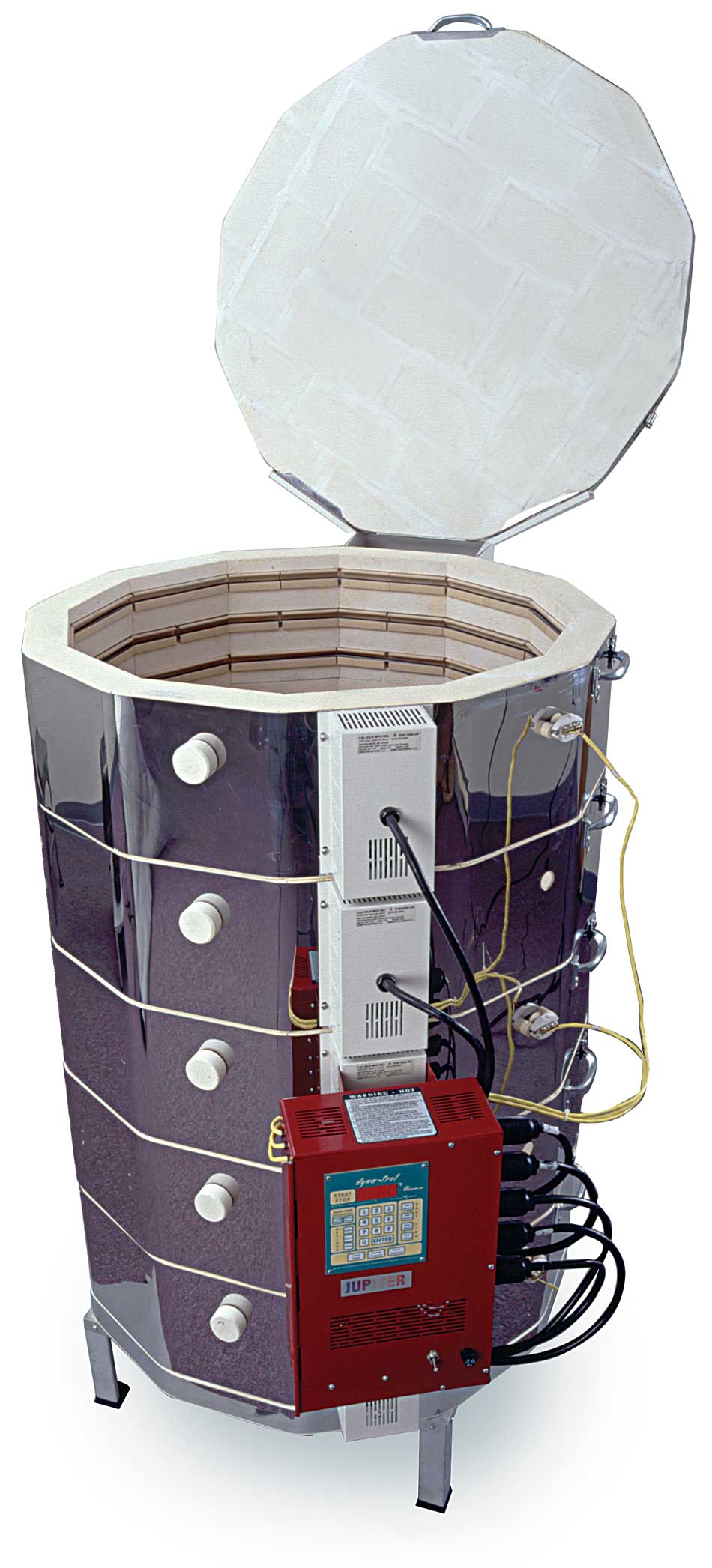

Jupiter Automatic Kiln with Multi-Program Zoned DynaTrol, 3" of brick, heavy-duty elements, stainless steel spring hinge, modular construction
Basic Information
3" (76 mm) K23 Premium Firebrick
Top-Loading
Five 9" high sections
12 sides
17 cubic ft (481 Liters)
610 pounds (276 Kg)
28" Diam x 45" High
40" Wide x 50" Deep x 59" High
101.6 cm Wide x 127 cm Deep x 149.9 cm High
101.6 cm Wide x 127 cm Deep x 149.9 cm High
Description
Five 9” high sections stack on top of each other. The hinge and element connection box hold the entire kiln together as an integrated unit. The kiln is very easy to assemble and disassemble. The kiln sections plug into the separate control panel. More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Spring loaded "Easy-Lift" lid opens with a feather-lite touch. The strength of the hinge allows the lid to rest back away from the opening without a support arm that would get in the way of loading the kiln.
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Five total: one per section.
Download (PDF)
Download (297.52 KB, PDF)
Control Specifications
Three control zones with two separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on panel
All controls and components are mounted in a separate control panel that is mounted to the element connection boxes with an air space in between. The control panel is hinged for easy access and maintenance. Each kiln section plugs into the control box. Control box can be easily removed for servicing. On/off switch and control fuse are included. More about Jupiter plug-in control panel.
Control box cover is hinged for easy access to inside of control box. Entire control box is removable.
Part Number
Watts
Volts
Phase
Fuse Size
K-A-294D/21
20800 W
208 V
Single Phase
125 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps100
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection1/0 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,875.00
K-A-294D/22
20800 W
208 V
Three Phase (Delta)
90 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps69.3
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection2 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,875.00
K-A-294D/41
20900 W
220-230 V
Single Phase
125 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps95
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection1/0 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for non-USA markets only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,875.00
K-A-294D/31
22800 W
240 V
Single Phase
125 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps95
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection1/0 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,875.00
K-A-294D/32
22800 W
240 V
Three Phase (Delta)
90 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps65.8
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection2 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,875.00
K-A-294D/52
20900 W
380-415 V
Three Phase (Wye)
90 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps65.8
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection2 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for non-USA markets only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,875.00
K-A-294D/62
W
460-480 V
Three Phase (Delta)
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$7,125.00
48" Wide x 44" Deep x 48" High and 48" Wide x 44" Deep x 38" High
121 cm Wide x 111 cm Deep x 121 cm High and 121 cm Wide x 111 cm Deep x 96 cm High
121 cm Wide x 111 cm Deep x 121 cm High and 121 cm Wide x 111 cm Deep x 96 cm High
48" Wide x 44" Deep x 60" High and 48" Wide x 44" Deep x 38" High
121 cm Wide x 111 cm Deep x 152 cm High and 121 cm Wide x 111 cm Deep x 96 cm High
121 cm Wide x 111 cm Deep x 152 cm High and 121 cm Wide x 111 cm Deep x 96 cm High
48" Wide x 44" Deep x 63" High and 48" Wide x 44" Deep x 38" High
121 cm Wide x 111 cm Deep x 160 cm High and 121 cm Wide x 111 cm Deep x 96 cm High
121 cm Wide x 111 cm Deep x 160 cm High and 121 cm Wide x 111 cm Deep x 96 cm High
48" Wide x 44" Deep x 63" High and 48" Wide x 44" Deep x 38" High
121 cm Wide x 111 cm Deep x 160 cm High and 121 cm Wide x 111 cm Deep x 96 cm High
121 cm Wide x 111 cm Deep x 160 cm High and 121 cm Wide x 111 cm Deep x 96 cm High
641 lbs (291 kg)
+ Kit 819 lbs (371 kg)
+ Vent 666 lbs (302 kg)
+ Kit + Vent 844 lbs (383 kg)
Skidded Carton with Foam-in-Place packaging
