JD230-JH JH Series - Special Kilns for Crystalline Glaze

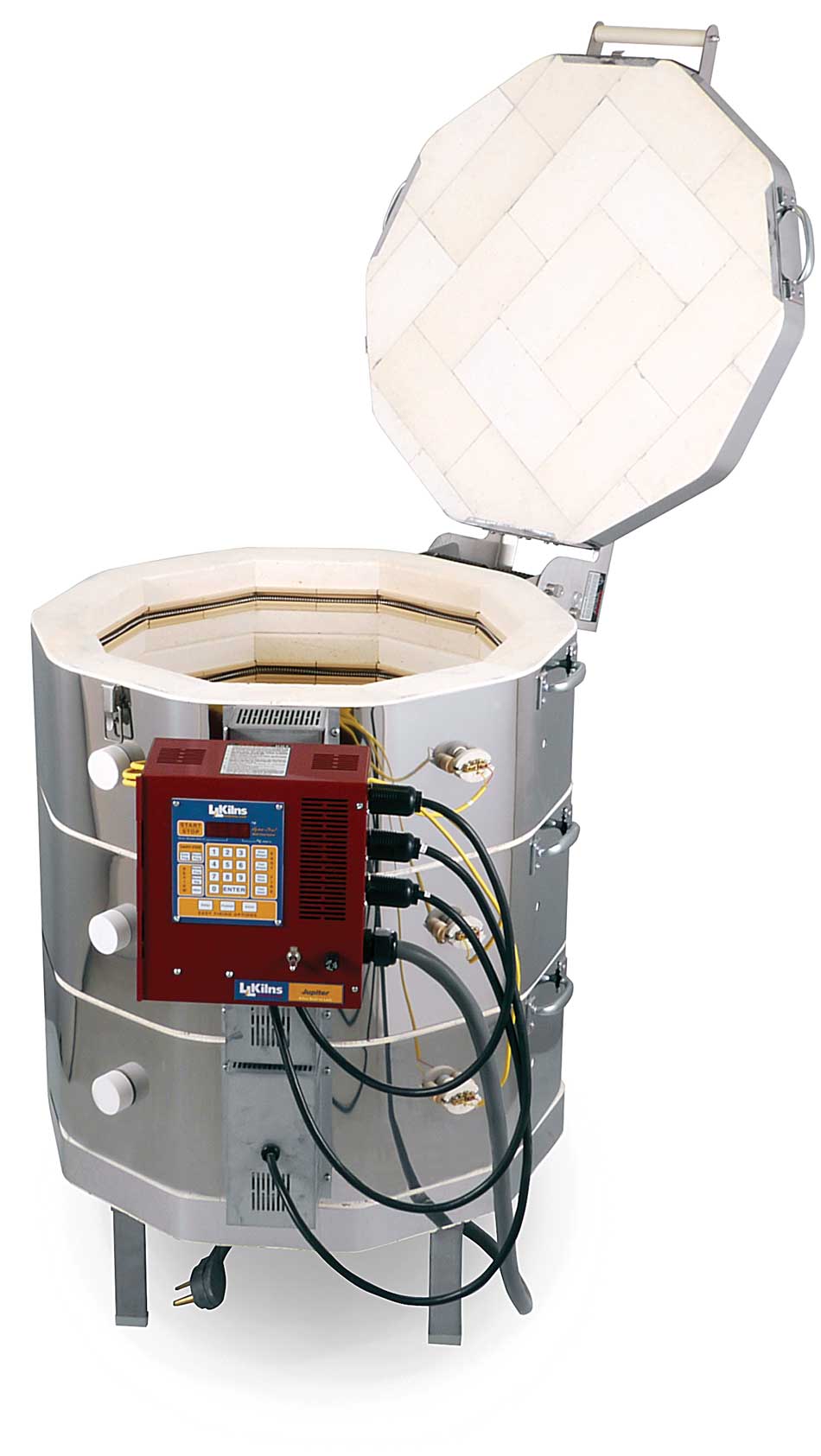

This is a JD230. It does not show the Quad elements on the larger JD2927 control box.
Click on image to enlarge
Furniture Kit
H-J-K23X/00 ($415.00)
Two 21" Full Round Shelves and Four 21" Half Round Shelves, Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, Heat Resistant Gloves and 5 pounds Cone 10 Kiln Wash
Features
Performance
Durability
Ease of Use
Support
Serviceability
Accessories
Control
Elements & Power
Books
General
Vent
JH Series Crystalline Glaze Kiln with extra power, K25 brick, Quad Super Heavy Duty Elements, 2-1/2 brick except with a 3" top, type S thermocouples.
Basic Information
2-1/2" (63 mm) K25 2500F Firebrick, 3" (76mm) Top
Top-Loading
Three 9" high sections
10 sides
7 cubic ft (198 Liters)
295 pounds (134 Kg)
22-3/8" Diam x 27" High
56.8 cm Diam x 68.6 cm High
56.8 cm Diam x 68.6 cm High
32" Wide x 45" Deep x 41" High
81.3 cm Wide x 114.3 cm Deep x 104.1 cm High
81.3 cm Wide x 114.3 cm Deep x 104.1 cm High
Description
Three 9” high sections stack on top of each other. The hinge and element connection box hold the entire kiln together as an integrated unit. The kiln is very easy to assemble and disassemble. The kiln sections plug into the separate control panel. More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Spring loaded "Easy-Lift" lid opens with a feather-lite touch. The strength of the hinge allows the lid to rest back away from the opening without a support arm that would get in the way of loading the kiln.
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Three total: one per section.
Download (PDF)
Download (669.21 KB, PDF)
Control Specifications
Three control zones with two separate thermocouples. More about zone control.
Type S Thermocouple in an Alumina Protection Tube (4.75" / 120mm)
Mounted on panel
All controls and components are mounted in a separate control panel that is mounted to the element connection boxes with an air space in between. The control panel is hinged for easy access and maintenance. Each kiln section plugs into the control box. Control box can be easily removed for servicing. On/off switch and control fuse are included. More about Jupiter plug-in control panel.
Control box cover is hinged for easy access to inside of control box. Entire control box is removable.
Part Number
Watts
Volts
Phase
Fuse Size
K-A-231J/21
12480 W
208 V
Single Phase
80 Amp
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps60
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection3 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$4,400.00
K-A-231J/22
12480 W
208 V
Three Phase (Delta)
50 Amp
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps34.7
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection6 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$4,400.00
K-A-231J/41
12540 W
220-230 V
Single Phase
80 Amp
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps57
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection3 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for non-USA markets only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$4,400.00
K-A-231J/31
13680 W
240 V
Single Phase
80 Amp
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps57
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection3 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$4,400.00
K-A-231J/32
13680 W
240 V
Three Phase (Delta)
50 Amp
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps32.9
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection6 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$4,400.00
K-A-231J/52
W
380-415 V
Three Phase (Wye)
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection
- Branch Fusing
Certifications and Markets
- InternationalMade for non-USA markets only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$4,400.00
36" Wide x 36" Deep x 44" High
91 cm Wide x 91 cm Deep x 111 cm High
91 cm Wide x 91 cm Deep x 111 cm High
36" Wide x 36" Deep x 48" High
91 cm Wide x 91 cm Deep x 121 cm High
91 cm Wide x 91 cm Deep x 121 cm High
36" Wide x 36" Deep x 60" High
91 cm Wide x 91 cm Deep x 152 cm High
91 cm Wide x 91 cm Deep x 152 cm High
36" Wide x 36" Deep x 60" High
91 cm Wide x 91 cm Deep x 152 cm High
91 cm Wide x 91 cm Deep x 152 cm High
312 lbs (142 kg)
+ Kit 387 lbs (176 kg)
+ Vent 337 lbs (153 kg)
+ Kit + Vent 412 lbs (187 kg)
Skidded Carton with Foam-in-Place packaging
