DL11-D Doll/Test Kilns - 120 Volt Table Top Kilns
Questions? Ready to Order?
Call 800-750-8350 or
Send an Email to be directed to the right distributor.
No photo is currently available. This photo shows a 3-button control instead of the DynaTrol.
Furniture Kit
H-D-KDHL/00 ($150.00)
Two 9" Full Round Shelves and One 9" Half Round Shelf, Four each of 1/2", 1", 1-1/2", 2", 3", & 4" High 1" Triangular Ceramic Posts, 1 pound Cone 10 Kiln Wash
Features
Performance
Durability
Ease of Use
Support
Serviceability

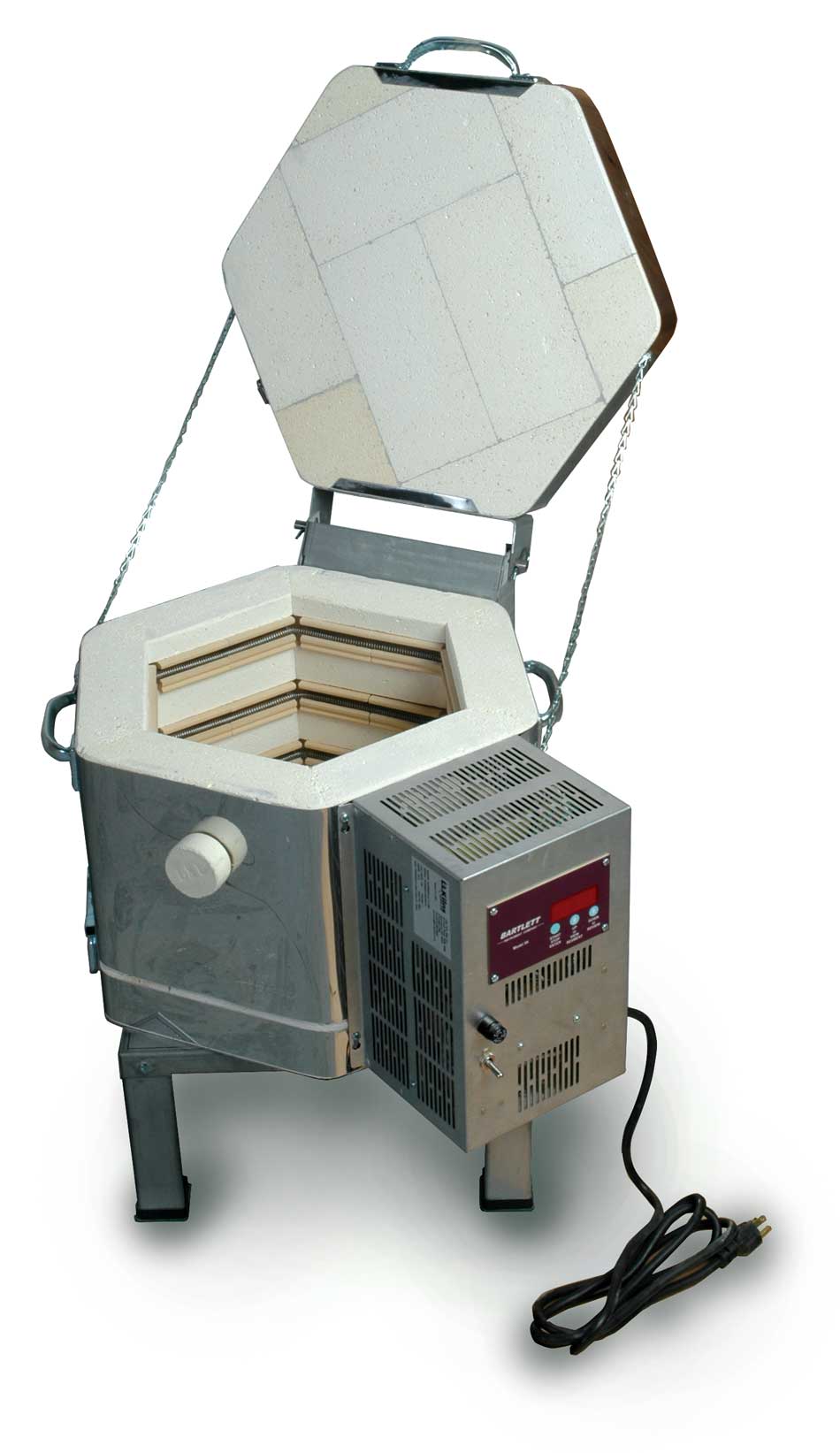

DL11-D Doll/Test Kiln with a DynaTrol Controller, 120 volts, 15 amps.
Basic Information
2-1/2" (63 mm) K23 Premium Firebrick
Top-Loading
One section
6 sides
0.5 cubic ft (14 Liters)
105 pounds (47 Kg)
11" Diam x 9" High
19" Wide x 25" Deep x 22" High
48.3 cm Wide x 63.5 cm Deep x 55.9 cm High
48.3 cm Wide x 63.5 cm Deep x 55.9 cm High
Description
One 9” high section sits on a bottom. The kiln is very easy to assemble and disassemble.
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Simple strong hinge with chain for door support
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
One solid ceramic peephole plug with full 1” diameter.
Download (245.57 KB, PDF)
Control Specifications
Single Zone.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on panel
All controls and components are mounted in a separate control panel that is mounted to the element connection boxes with an air space in between. The control panel is hinged for easy access and maintenance. Each kiln section plugs into the control box. Control box can be easily removed for servicing. On/off switch and control fuse are included. More about Jupiter plug-in control panel.
Controls are mounted in a removable box.
Part Number
Watts
Volts
Phase
Fuse Size
K-D-DL1D/10
1800 W
120 V
Single Phase
20 Amp
Maximum Temperature
- Max TemperatureCone 5, 2170F, 1190C
Additional Electrical Information
- Amps15
- Max TemperatureCone 5, 2170F, 1190C
- Wire Connection5-15P Plug (15 amp, 120 volt)
- Wire Ga for Connection14 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for USA market only
- CENot CE certified
- UL499Not listed to UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$1,350.00
36" Wide x 36" Deep x 25" High
91 cm Wide x 91 cm Deep x 63 cm High
91 cm Wide x 91 cm Deep x 63 cm High
36" Wide x 36" Deep x 25" High
91 cm Wide x 91 cm Deep x 63 cm High
91 cm Wide x 91 cm Deep x 63 cm High
N/A
N/A
N/A
N/A
N/A
N/A
110 lbs (50 kg)
+ Kit 130 lbs (59 kg)
+ Vent lbs ( kg)
+ Kit + Vent 110 lbs ( kg)
Skidded Carton with Foam-in-Place packaging
