DaVinci Square/Rectangular Large Production Kilns

Home >

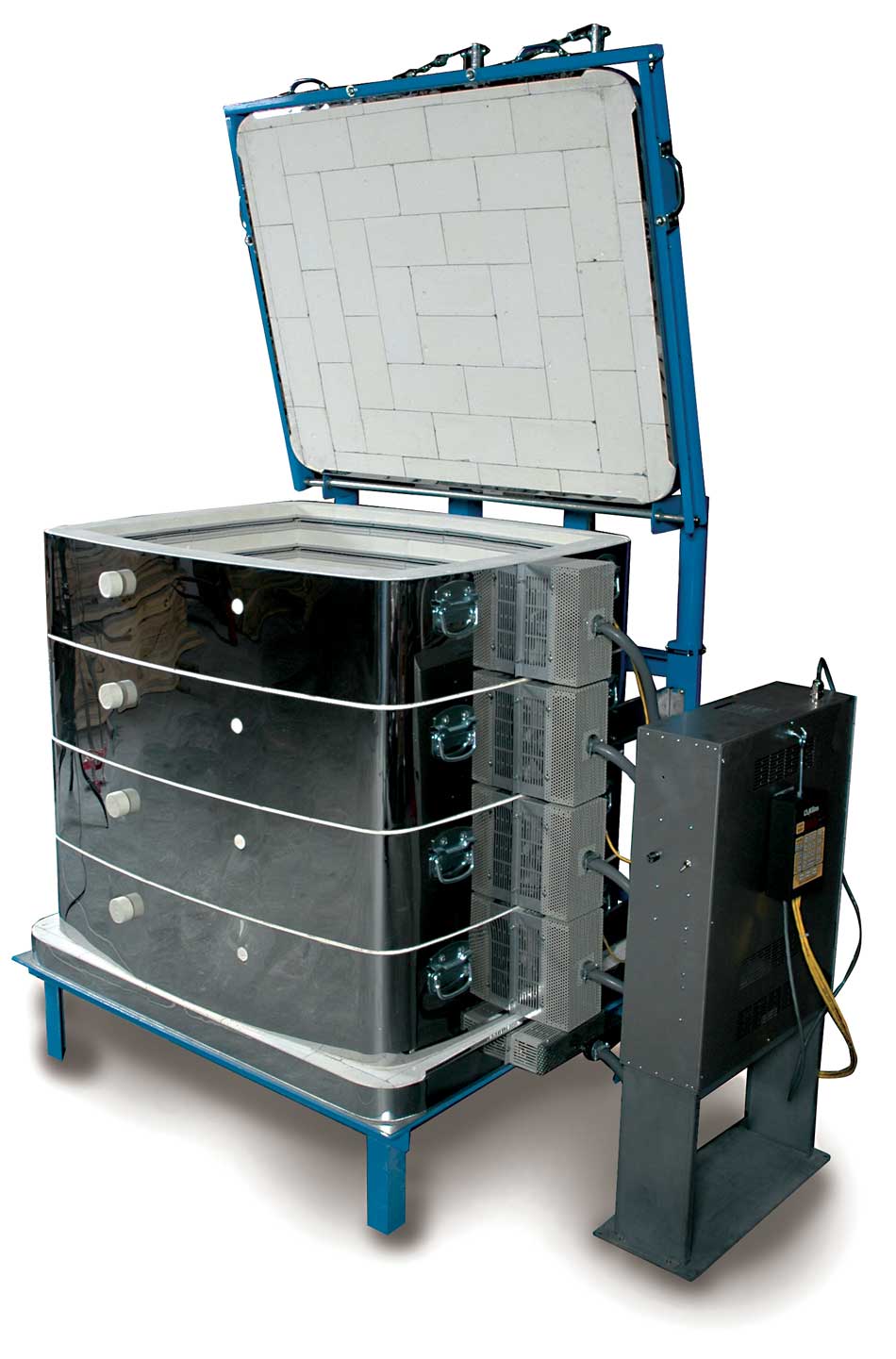

L&L DaVinci Top-Loading Square & Rectangular Production Kiln

Features

Safety

Listed to UL499 Standard by MET
Most L&L kilns are MET listed to UL499 standards

Ease of Use

Spring-Loaded Lid For Easy Opening and Gentle Closing of DaVinci
Even the largest DaVinci lids can easily be lifted by one person.
Solid Wide-View Peephole Plugs
Solid large non-tapered peepholes allow a wider view into the kiln.

Support

Superior Technical Support
The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.

Durability

Hard Ceramic Element Holders Make L&L Kilns More Durable
Durability, Repairability, Better Heat Transfer
Thermocouple Protection Tubes
Mullite protection tubes extend thermocouple life and keep kiln clean
Welded Angle Iron Stand
Welded heavy-duty stand supports heavy loads. Alumized top sheet reflects heat.
Thick 8 Gauge Thermocouples
Thick 8 gauge thermocouples last a long time.
Proprietary Reflective Coating Hardens & Seals Brick
Special brick coating hardens and seals brick for durability and cleaner operation.
Floor standing Panel with Industrial Wiring
DaVinci Panels are wired to industrial standards with good clean wire layout.
Stainless Clips Secure Lids to Bands
Stainless Steel clips help the lid stay secure and durable.
Corrosion Resistant Case
Corrosion resistant materials and methods result in a long-lasting kiln.
Redundant Case Clamps
Three case clamps are redundant safety for your L&L kiln.

Performance

Automatic Zone Control
Zone control gives you the utmost in controllable temperature uniformity.
DynaTrol Multi-Program Zone Control
Four preset ceramic programs and six custom programs with eight segments each.
Premium Firebrick
Premium K23 firebrick provides good insulation combined with reasonable durability.

Serviceability

Molded Ceramic Industrial-Grade Element Connection Blocks
Industrial grade ceramic terminal blocks make changing elements easy.
Reversible Bottoms
The bottom can be easily reversed in case of a firing mishap.

Square and Rectangular Shape with strong arched sides -  better than an oval for when you need large production volume

DaVinci square and rectangular kilns are available in many sizes up to 34.5 cubic feet (975 liters). They fire very evenly, and because of their arched sides, they are both extremely strong and stable and have extra space to allow the kiln air to circulate. Look at these kilns before you decide on an oval.

** Note: this requires Javascript and loads large image files. **

Kiln Models

Model No Cubic Ft Inside Dim (Inches) Description
XB2318-D 5 22" Wide x 22" Deep x 18" High High Power Elements
X2327-D 8.1 22" Wide x 22" Deep x 27" High
XB2327-D 8.1 22" Wide x 22" Deep x 27" High High Powered Elements
X2336-D 10.8 22" Wide x 22" Deep x 36" High
XB2336-D 10.8 22" Wide x 22" Deep x 36" High High Powered Elements
X2345-D 13.5 22" Wide x 22" Deep x 45" High
XB2345-D 13.5 22" Wide x 22" Deep x 45" High High Powered Elements
XB2818-D 7.8 26-1/2" Wide x 26-1/2" Deep x 18" High High Power Elements
XB2818-D-PB 7.8 26-1/2" Wide x 26-1/2" Deep x 18" High High Powered Elements and Powered Bottom
X2827-D 11.7 26-1/2" Wide x 26-1/2" Deep x 27" High
X2827-D-PB 11.7 26-1/2" Wide x 26-1/2" Deep x 27" High Powered Bottom
XB2827-D 11.7 26-1/2" Wide x 26-1/2" Deep x 27" High High Powered Elements
XB2827-D-PB 11.7 26-1/2" Wide x 26-1/2" Deep x 27" High Extra power & powered bottom
X2836-D 15.6 26-1/2" Wide x 26-1/2" Deep x 36" High
X2836-D-PB 15.6 26-1/2" Wide x 26-1/2" Deep x 36" High Powered Bottom
XB2836-D 15.6 26-1/2" Wide x 26-1/2" Deep x 36" High High Powered Elements
XB2836-D-PB 15.6 26-1/2" Wide x 26-1/2" Deep x 36" High Extra power & powered bottom
X2845-D 19.5 26-1/2" Wide x 26-1/2" Deep x 45" High
X2845-D-PB 19.5 26-1/2" Wide x 26-1/2" Deep x 45" High Powered Bottom
XB2845-D 19.5 26-1/2" Wide x 26-1/2" Deep x 45" High High Powered Elements
XB2845-D-PB 19.5 26-1/2" Wide x 26-1/2" Deep x 45" High Extra power & powered bottom
XB3218-D 10 30-1/2" Wide x 30-1/2" Deep x 18" High High Power Elements
XB3218-D-PB 10 30-1/2" Wide x 30-1/2" Deep x 18" High High Powered Elements and Powered Bottom
X3227-D 15 30-1/2" Wide x 30-1/2" Deep x 27" High
X3227-D-PB 15 30-1/2" Wide x 30-1/2" Deep x 27" High Powered Bottom
XB3227-D 15 30-1/2" Wide x 30-1/2" Deep x 27" High High Powered Elements
XB3227-D-PB 15 30-1/2" Wide x 30-1/2" Deep x 27" High Extra power & powered bottom
X3236-D 20 30-1/2" Wide x 30-1/2" Deep x 36" High
X3236-D-PB 20 30-1/2" Wide x 30-1/2" Deep x 36" High Powered Bottom
XB3236-D 20 30-1/2" Wide x 30-1/2" Deep x 36" High High Powered Elements
XB3236-D-PB 20 30-1/2" Wide x 30-1/2" Deep x 36" High Extra power & powered bottom
X3245-D 25 30-1/2" Wide x 30-1/2" Deep x 45" High
X3245-D-PB 25 30-1/2" Wide x 30-1/2" Deep x 45" High Powered Bottom
XB3245-D 25 30-1/2" Wide x 30-1/2" Deep x 45" High High Powered Elements
XB3245-D-PB 25 30-1/2" Wide x 30-1/2" Deep x 45" High Extra power & powered bottom
TB2318-D 9.7 35-1/4" Wide x 26-1/2" Deep x 18" High High Power Elements
TB2318-D-PB 9.7 35-1/4" Wide x 26-1/2" Deep x 18" High High Powered Elements and Powered Bottom
T2327-D 14.6 35-1/4" Wide x 26-1/2" Deep x 27" High
T2327-D-PB 14.6 35-1/4" Wide x 26-1/2" Deep x 27" High Powered Bottom
TB2327-D 14.6 35-1/4" Wide x 26-1/2" Deep x 27" High High Powered Elements
TB2327-D-PB 14.6 35-1/4" Wide x 26-1/2" Deep x 27" High Extra power & powered bottom
T2336-D 19.4 35-1/4" Wide x 26-1/2" Deep x 36" High
T2336-D-PB 19.4 35-1/4" Wide x 26-1/2" Deep x 36" High Powered Bottom
TB2336-D 19.4 35-1/4" Wide x 26-1/2" Deep x 36" High High Powered Elements
TB2336-D-PB 19.4 35-1/4" Wide x 26-1/2" Deep x 36" High Extra power & powered bottom
T2345-D 24.3 35-1/4" Wide x 26-1/2" Deep x 45" High
T2345-D-PB 24.3 35-1/4" Wide x 26-1/2" Deep x 45" High Powered Bottom
TB2345-D 24.3 35-1/4" Wide x 26-1/2" Deep x 45" High High Powered Elements
TB2345-D-PB 24.3 35-1/4" Wide x 26-1/2" Deep x 45" High Extra power & powered bottom
TB3418-D 13.8 43-1/2" Wide x 30-1/2" Deep x 18" High High Power Elements
TB3418-D-PB 13.8 43-1/2" Wide x 30-1/2" Deep x 18" High High Powered Elements and Powered Bottom
T3427-D 20.7 43-1/2" Wide x 30-1/2" Deep x 27" High
T3427-D-PB 20.7 43-1/2" Wide x 30-1/2" Deep x 27" High Powered Bottom
TB3427-D 20.7 43-1/2" Wide x 30-1/2" Deep x 27" High High Powered Elements
TB3427-D-PB 20.7 43-1/2" Wide x 30-1/2" Deep x 27" High Extra power & powered bottom
T3436-D 27.6 43-1/2" Wide x 30-1/2" Deep x 36" High
T3436-D-PB 27.6 43-1/2" Wide x 30-1/2" Deep x 36" High Powered Bottom
TB3436-D 27.6 43-1/2" Wide x 30-1/2" Deep x 36" High High Powered Elements
TB3436-D-PB 27.6 43-1/2" Wide x 30-1/2" Deep x 36" High Extra power & powered bottom
T3445-D 34.5 43-1/2" Wide x 30-1/2" Deep x 45" High
T3445-D-PB 34.5 43-1/2" Wide x 30-1/2" Deep x 45" High Powered Bottom
TB3445-D 34.5 43-1/2" Wide x 30-1/2" Deep x 45" High High Powered Elements
TB3445-D-PB 34.5 43-1/2" Wide x 30-1/2" Deep x 45" High Extra power & powered bottom
