XB3218-D-PB DaVinci Square/Rectangular Large Production Kilns

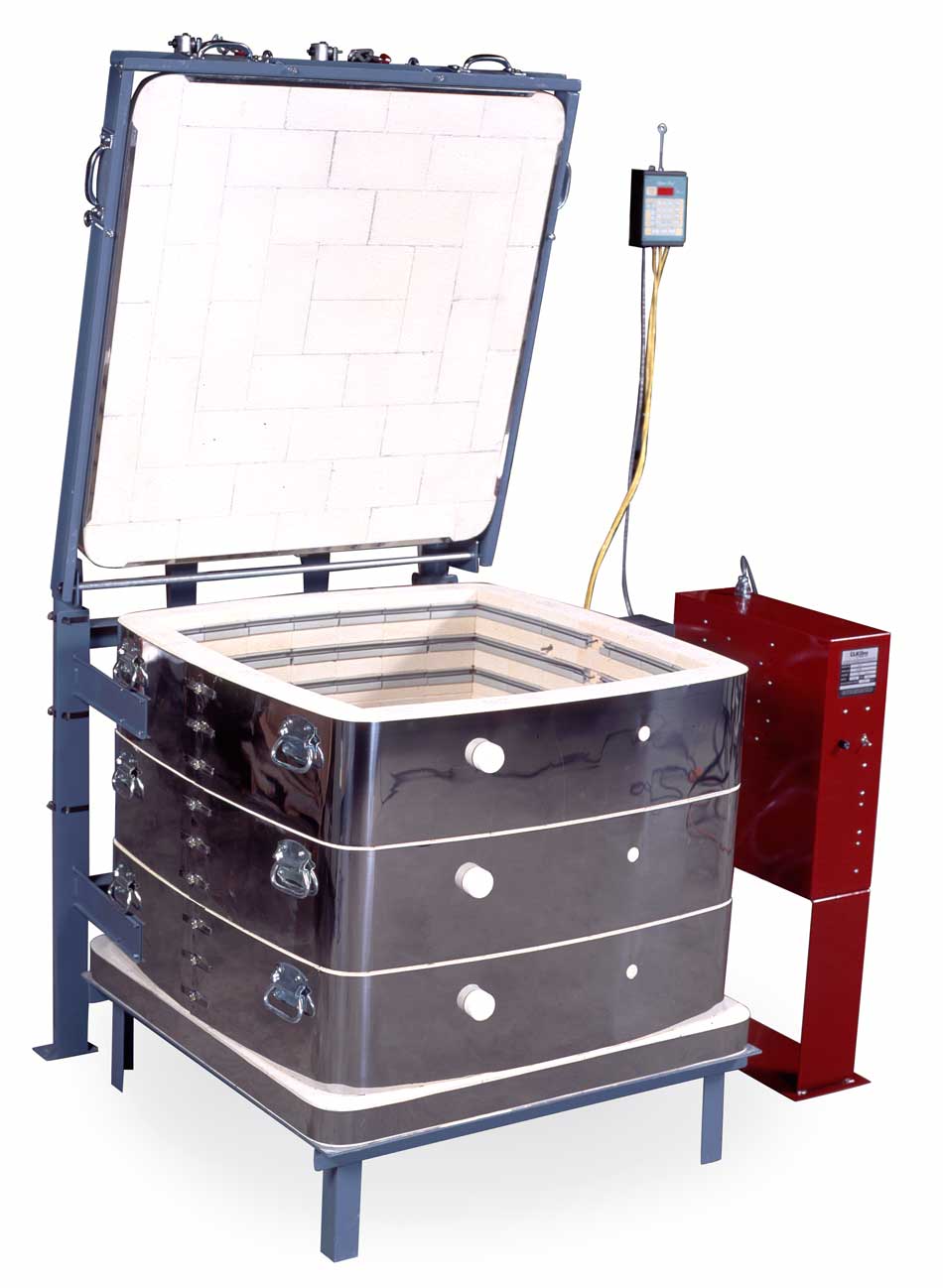

This is an X3227-D which is 27" high instead of 18" high (3 sections vs. 2 sections).
Click on image to enlarge
Furniture Kit
H-X-K218/00 ($475.00)
Four 28" X 14" Rectangular Shelves, Six Each 1/2", 1", 2", 4", 6", and 8" Square Posts, Heat resistant gloves, 5 pounds cone 10 kiln wash
Features
Performance
Durability
Ease of Use
Support
Serviceability
Safety
Accessories
Control
Elements & Power
Books
General
Vent
Square Automatic DaVinci Kiln with 3" brick, counterbalanced lid, floor-standing control panel and handheld Multi-Program Zoned DynaTrol control. Power bottom.
Basic Information
3" (76 mm) K23 Premium Firebrick
Top-Loading
Two 9" high sections
4 sides
10 cubic ft (283 Liters)
835 pounds (379 Kg)
30-1/2" Wide x 30-1/2" Deep x 18" High
77.5 cm Wide x 77.5 cm Deep x 45.7 cm High
77.5 cm Wide x 77.5 cm Deep x 45.7 cm High
49" Wide X 49" Deep X 32" High
124.5 cm Wide X 124.5 cm Deep X 81.3 cm High
124.5 cm Wide X 124.5 cm Deep X 81.3 cm High
Description
Two 9” high sections stack on top of each other. The stand is separate. The counterbalanced hinge gets attached to the kiln and floor for stability. The kiln is very easy to assemble and disassemble. The kiln sections plug into the separate control panel.
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. Unique shallow side arches create super-strong sides and allow for plenty of space for air circulation around kiln shelves.
Welded angle iron counterbalance system with springs. Safety latch included. Welded angle iron with leveling bolts.
The welded angle-iron stand is separate but attached to the case. It includes leveling bolts and holes for anchoring the kiln to the floor. The angle-iron frame is covered with a layer of aluminized steel which the bottom of the kiln sits on.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Two total: one per section.
Download (PDF)
Download (256.94 KB, PDF)
Control Specifications
Two control zones with two separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on panel
Floor-mount Plug-in.
Control box cover is hinged for easy access to inside of control box. DynaTrol is in a removable handheld box. Entire control box is removable.
Part Number
Watts
Volts
Phase
Fuse Size
K-X-321P/21
18928 W
208 V
Single Phase
125 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps91
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection1/0 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$6,400.00
K-X-321P/22
18928 W
208 V
Three Phase (Delta)
80 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps59.1
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection3 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$6,400.00
K-X-321P/41
18928 W
220-230 V
Single Phase
125 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps86
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection1/0 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for non-USA markets only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$6,400.00
K-X-321P/31
18928 W
240 V
Single Phase
100 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps78.9
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection1 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$6,400.00
K-X-321P/32
18928 W
240 V
Three Phase (Delta)
70 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps51.2
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection4 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$6,400.00
K-X-321P/52
18928 W
380-415 V
Three Phase (Wye)
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for non-USA markets only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$6,400.00
K-X-321P/62
18928 W
460-480 V
Three Phase (Delta)
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$7,650.00
54" x 48" x 45" High and 48" x 44" x 74" High
137 x 121 cm x 114 cma High and 121 cm x 111 cm x 188 cm High
137 x 121 cm x 114 cma High and 121 cm x 111 cm x 188 cm High
54" x 48" x 45" High and 48" x 44" x 74" High
137 cm x 121 cm x 114 cm High and 121 cm x 111 cm x 188 cm High
137 cm x 121 cm x 114 cm High and 121 cm x 111 cm x 188 cm High
54" x 48" x 45" High and 48" x 44" x 74" High
137 cm x 121 cm x 114 cm High and 121 cm x 111 cm x 188 cm High
137 cm x 121 cm x 114 cm High and 121 cm x 111 cm x 188 cm High
54" x 48" x 45" High and 48" x 44" x 74" High
137 cm x 121 cm x 114 cm High and 121 cm x 111 cm x 188 cm High
137 cm x 121 cm x 114 cm High and 121 cm x 111 cm x 188 cm High
880 lbs (399 kg)
+ Kit 982 lbs (445 kg)
+ Vent 905 lbs (411 kg)
+ Kit + Vent 1007 lbs (457 kg)
Two Wooden Crates
