TB2345-D-PB DaVinci Square/Rectangular Large Production Kilns
Questions? Ready to Order?
Call 800-750-8350 or
Send an Email to be directed to the right distributor.
Furniture Kit
H-T-K445/00 ($1,140.00)
Fifteen 22" X 11" Rectangular Shelves, Twelve Each 1/2", 1", 2", 4", 6", and 8" Square Posts, Heat resistant gloves, 5 pounds cone 10 kiln wash
Features
Performance
Durability
Ease of Use
Support
Serviceability
Safety

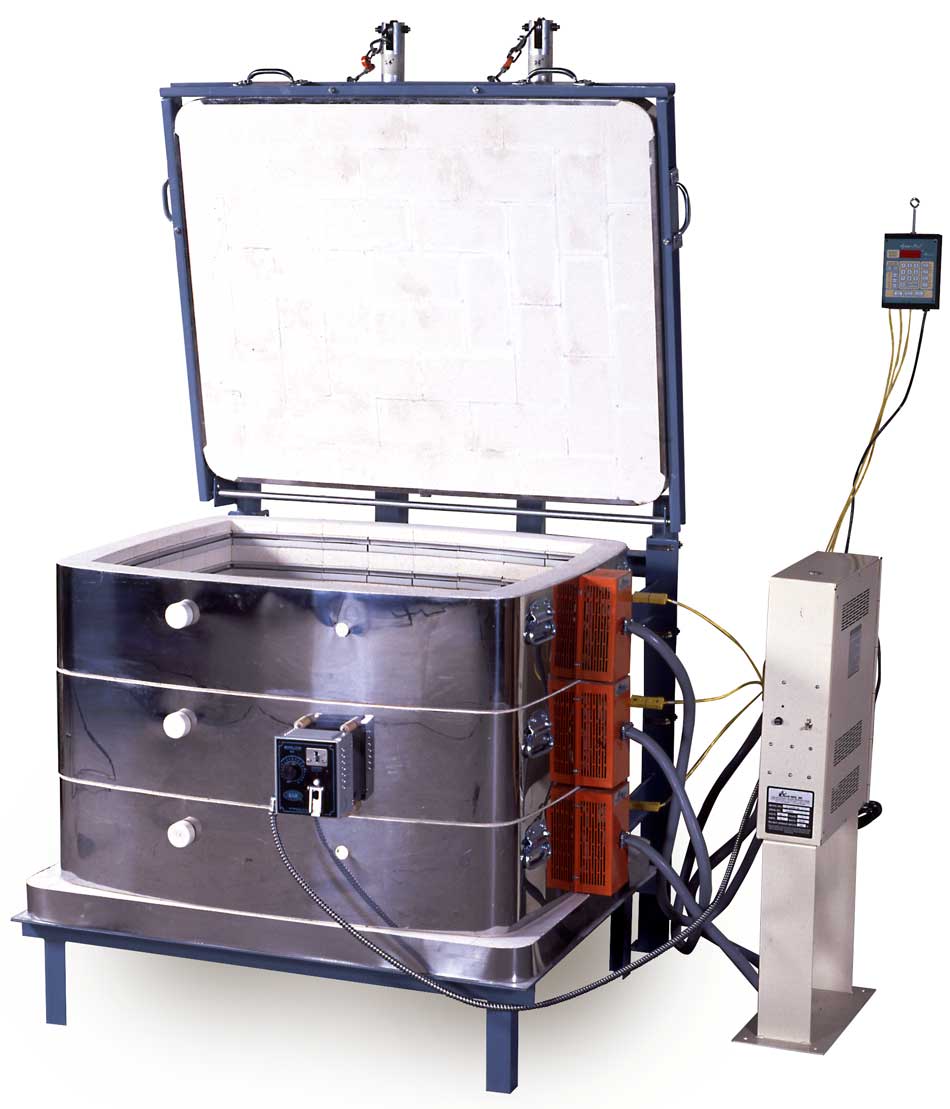

Rectangular Automatic DaVinci Kiln with 3" brick, counterbalanced lid, floor-standing control panel and handheld Multi-Program Zoned DynaTrol control. Extra KW for faster heat-up. Power bottom.
Basic Information
3" (76 mm) K23 Premium Firebrick
Top-Loading
Five 9" high sections
4 sides
24.3 cubic ft (688 Liters)
1235 pounds (560 Kg)
35-1/4" Wide x 26-1/2" Deep x 45" High
89.5 cm Wide x 67.3 cm Deep x 114.3 cm High
89.5 cm Wide x 67.3 cm Deep x 114.3 cm High
54" Wide X 43" Deep X 59" High
137.2 Wide X 109.2 cm Deep X 149.9 cm High
137.2 Wide X 109.2 cm Deep X 149.9 cm High
Description
Five 9” high sections stack on top of each other. The stand is separate. The counterbalanced hinge gets attached to the kiln and floor for stability. The kiln is very easy to assemble and disassemble. The kiln sections plug into the separate control panel. More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. Unique shallow side arches create super-strong sides and allow for plenty of space for air circulation around kiln shelves.
Welded angle iron counterbalance system with springs. Safety latch included. Welded angle iron with leveling bolts.
The welded angle-iron stand is separate but attached to the case. It includes leveling bolts and holes for anchoring the kiln to the floor. The angle-iron frame is covered with a layer of aluminized steel which the bottom of the kiln sits on.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Five total: one per section.
Download (PDF)
Download (278.07 KB, PDF)
Control Specifications
Three control zones with two separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on panel
Floor-mount Plug-in.
Control box cover is hinged for easy access to inside of control box. DynaTrol is in a removable handheld box. Entire control box is removable.
Part Number
Watts
Volts
Phase
Fuse Size
K-T-234W/21
43466 W
208 V
Single Phase
225 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps209
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection250 mcm
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$9,110.00
K-T-234W/22
43466 W
208 V
Three Phase (Delta)
125 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps127.7
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection1/0 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$9,110.00
K-T-234W/41
43466 W
220-230 V
Single Phase
225 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps197.6
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection250 mcm
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for non-USA markets only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$9,110.00
K-T-234W/31
43466 W
240 V
Single Phase
225 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps181.1
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection250 mcm
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$9,110.00
K-T-234W/32
43466 W
240 V
Three Phase (Delta)
125 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps110.7
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection1/0 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$9,110.00
K-T-234W/52
43466 W
380-415 V
Three Phase (Wye)
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for non-USA markets only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$9,110.00
K-T-234W/62
43466 W
460-480 V
Three Phase (Delta)
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$10,360.00
62" x 48" x 48" High and 62" x 48" x 36" High and 50" x 44" x 84" High
157 cm x 121 cm x 121 cma High and 157 cm x 121 cm x 91 cma High and 127 cm x 111 cm x 213 High
157 cm x 121 cm x 121 cma High and 157 cm x 121 cm x 91 cma High and 127 cm x 111 cm x 213 High
62" x 48" x 48" High and 62" x 48" x 36" High and 50" x 44" x 84" High
157 cm x 121 cm x 121 cm High and 157 cm x 121 cm x 91 cm High and 127 cm x 111 cm x 213 cm High
157 cm x 121 cm x 121 cm High and 157 cm x 121 cm x 91 cm High and 127 cm x 111 cm x 213 cm High
62" x 48" x 48" High and 62" x 48" x 36" High and 50" x 44" x 84" High
157 cm x 121 cm x 121 cm High and 157 cm x 121 cm x 91 cm High and 127 cm x 111 cm x 213 cm High
157 cm x 121 cm x 121 cm High and 157 cm x 121 cm x 91 cm High and 127 cm x 111 cm x 213 cm High
62" x 48" x 48" High and 62" x 48" x 36" High and 50" x 44" x 84" High
157 cm x 121 cm x 121 cm High and 157 cm x 121 cm x 91 cm High and 127 cm x 111 cm x 213 cm High
157 cm x 121 cm x 121 cm High and 157 cm x 121 cm x 91 cm High and 127 cm x 111 cm x 213 cm High
1300 lbs (590 kg)
+ Kit 1530 lbs (694 kg)
+ Vent 1325 lbs (601 kg)
+ Kit + Vent 1555 lbs (705 kg)
Three Wooden Crates
