T3436-D-PB DaVinci Square/Rectangular Large Production Kilns

Home >

Questions? Ready to Order?

Call 800-750-8350 or
Send an Email to be directed to the right distributor.

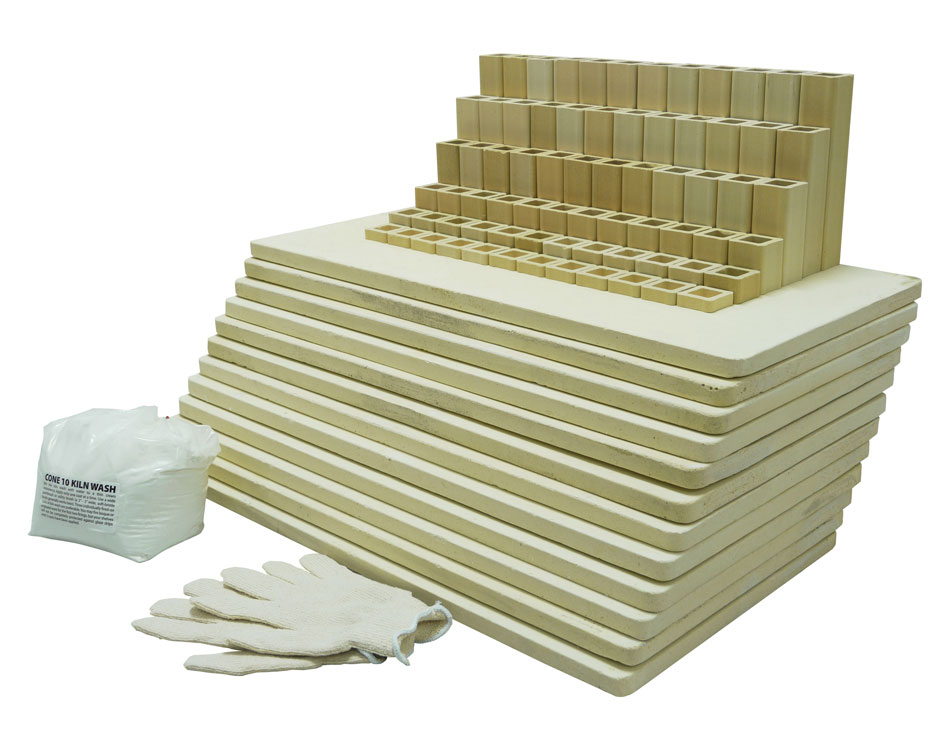

Furniture Kit

H-T-K536/00 ($1,230.00)

Twelve 28" X 14" X 3/4" Rectangular Shelves, Twelve Each 1/2", 1", 2", 4", 6", and 8" Square Posts, Heat resistant gloves, 5 pounds cone 10 kiln wash

Features

Performance

Dynamic Zone Control
DynaTrol Multi-Program Zone Control
Premium Firebrick

Durability

Corrosion Resistant Case
Floor Standing Panel with Industrial Wiring for DaVinci Kilns
Hard Ceramic Element Holders for Durability
Proprietary Reflective Coating Hardens & Seals Brick
Redundant Case Clamps
Steel Frame Supports Lid
Thick 8 Gauge Thermocouples
Welded Angle Iron Stand for DaVinci Kilns

Ease of Use

Solid Wide-View Peephole Plugs

Support

Superior Technical Support

Serviceability

Floor-Standing Panel Away from Kiln
Molded Ceramic Industrial-Grade Element Connection Blocks
Sectional Kiln Construction for DaVinci Kilns

Safety

Listed to UL499 Standard by MET
$10090

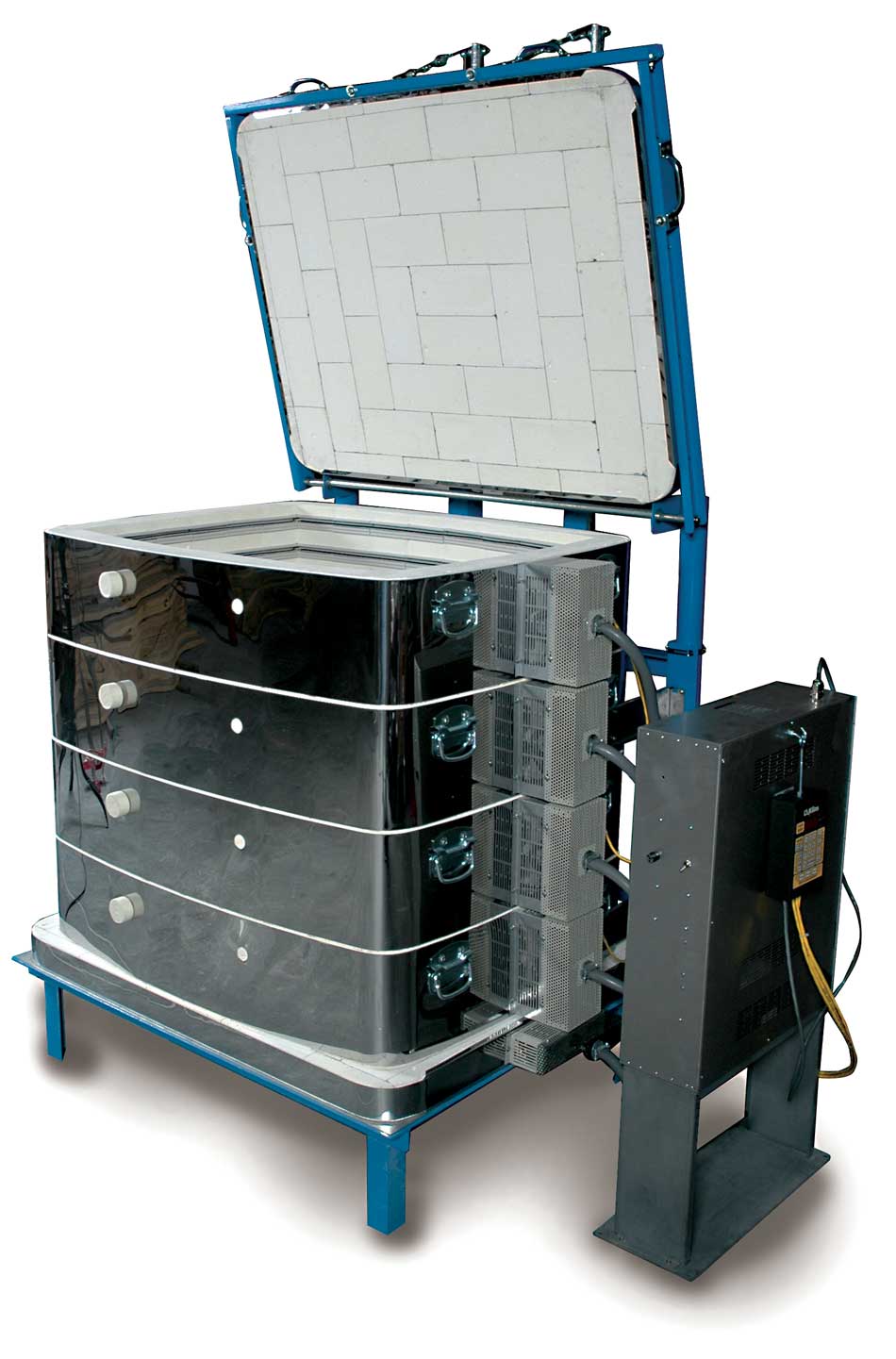

Rectangular Automatic DaVinci Kiln with 3" brick, counterbalanced lid, floor-standing control panel and handheld Multi-Program Zoned DynaTrol control. Power bottom.

Basic Information

3" (76 mm) K23 Premium Firebrick
Top-Loading
Four 9" high sections
4 sides
27.6 cubic ft (782 Liters)
1400 pounds (635 Kg)
43-1/2" Wide x 30-1/2" Deep x 36" High
110.5 cm Wide x 77.5 cm Deep x 91.4 cm High
62" Wide X 49" Deep X 50" High
157.5 cm Wide X 124.5 cm Deep X 127 cm High

Description

Four 9” high sections stack on top of each other. The stand is separate. The counterbalanced hinge gets attached to the kiln and floor for stability. The kiln is very easy to assemble and disassemble. The kiln sections plug into the separate control panel.  More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. Unique shallow side arches create super-strong sides and allow for plenty of space for air circulation around kiln shelves.
Welded angle iron counterbalance system with springs. Safety latch included. Welded angle iron with leveling bolts.
The welded angle-iron stand is separate but attached to the case. It includes leveling bolts and holes for anchoring the kiln to the floor. The angle-iron frame is covered with a layer of aluminized steel which the bottom of the kiln sits on.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Four total: one per section.
Limited Three Year Warranty
Download (PDF)
Download (310.12 KB, PDF)

Control Specifications

DynaTrol Multi-Program Zone Control
Three control zones with two separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on panel
Floor-mount Plug-in.
Control box cover is hinged for easy access to inside of control box. DynaTrol is in a removable handheld box. Entire control box is removable.
Part Number
Watts
Volts
Phase
Fuse Size
K-T-233P/21
30400 W
208 V
Single Phase
200 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps145.9
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionDirect Wire
  • Wire Ga for Connection4/0 Ga
  • Branch FusingBranch Fused

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$8,050.00
K-T-233P/22
30400 W
208 V
Three Phase (Delta)
125 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps99.3
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionDirect Wire
  • Wire Ga for Connection1/0 Ga
  • Branch FusingBranch Fused

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$8,050.00
K-T-233P/41
30400 W
220-230 V
Single Phase
200 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps137.9
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionDirect Wire
  • Wire Ga for Connection4/0 Ga
  • Branch FusingBranch Fused

Certifications and Markets

  • InternationalMade for non-USA markets only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$8,050.00
K-T-233P/31
30400 W
240 V
Single Phase
250 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps126.5
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionDirect Wire
  • Wire Ga for Connection2/0 Ga
  • Branch FusingBranch Fused

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$8,050.00
K-T-233P/32
30400 W
240 V
Three Phase (Delta)
100 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps86
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionDirect Wire
  • Wire Ga for Connection1 Ga
  • Branch FusingBranch Fused

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$8,050.00
K-T-233P/52
30400 W
380-415 V
Three Phase (Wye)

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionDirect Wire
  • Wire Ga for Connection
  • Branch FusingBranch Fused

Certifications and Markets

  • InternationalMade for non-USA markets only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$8,050.00
K-T-233P/62
30400 W
460-480 V
Three Phase (Delta)

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionDirect Wire
  • Wire Ga for Connection
  • Branch FusingBranch Fused

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$9,300.00
65" x 48" x 63" High and 65" x 48" x 84" High
165 cm x 121 cm x 160 cma High and 165 cm x 121 cm x 213 High
65" x 48" x 63" High and 65" x 48" x 84" High
165 cm x 121 cm x 160 cm High and 165 cm x 121 cm x 213 cm High
65" x 48" x 63" High and 65" x 48" x 84" High
165 cm x 121 cm x 160 cm High and 165 cm x 121 cm x 213 cm High
65" x 48" x 63" High and 65" x 48" x 84" High
165 cm x 121 cm x 160 cm High and 165 cm x 121 cm x 213 cm High
1475 lbs (669 kg) + Kit 1771 lbs (803 kg) + Vent 1500 lbs (680 kg) + Kit + Vent 1796 lbs (815 kg)
Two Wooden Crates
