DAVINCI SQUARE & RECTANGULAR KILNS

DAVINCI SQUARE & RECTANGULAR KILNS

KILN:

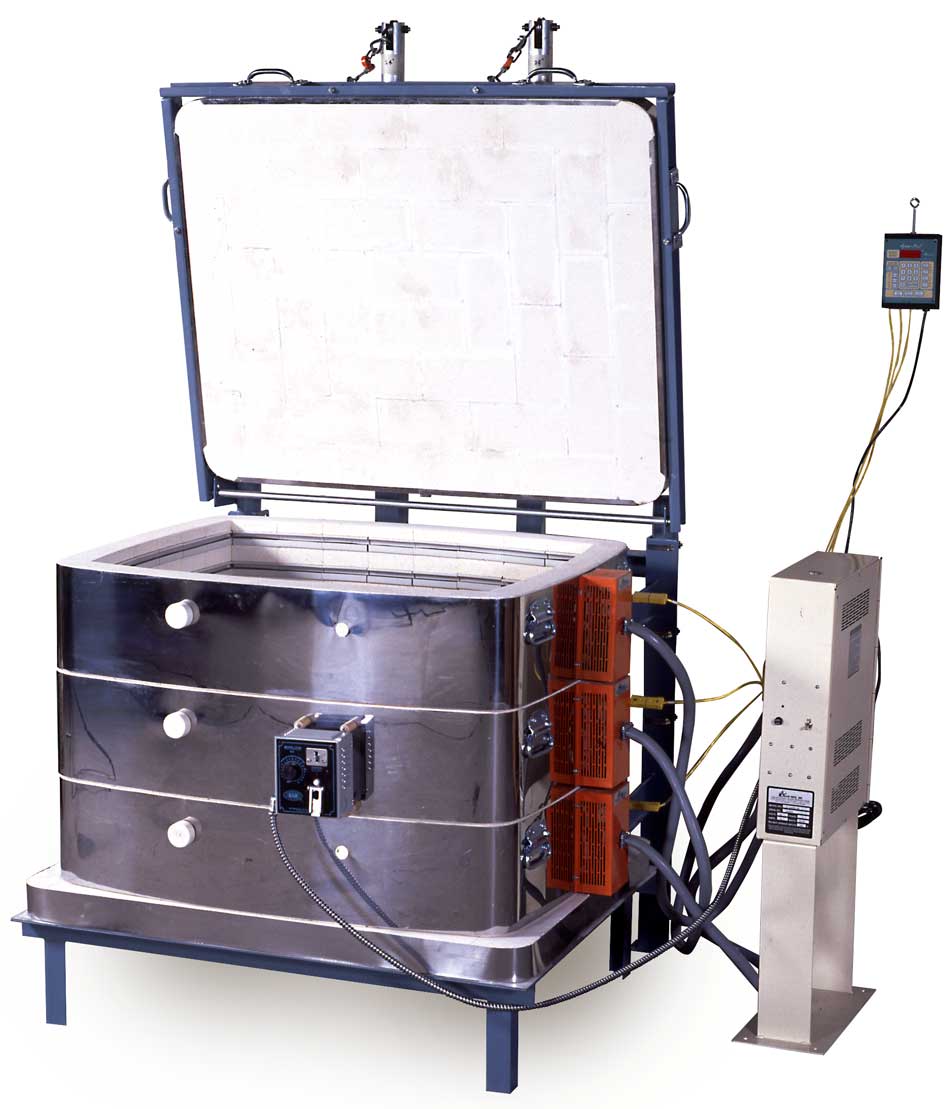

T2327 Electric Kiln

Large Rectangular Sectional Kiln

KILN:

T2327 Electric Kiln

Large Rectangular Sectional Kiln

    KEY SPECS
  • Medium-Large
    (14.4 cubic feet)
  • Genesis Multi-Zone Touchscreen Control
  • Cone 10, 2350F, 1290C
$11,155
ESTIMATED LEAD TIME: 8 to 10 Weeks
See Lead Times & Confirmation Process

Model T2327-D Rectangular Automatic DaVinci Kiln with a Multi-Program Three-Zoned Genesis Touchscreen control. Floor-standing control panel. Sectional and modular construction allows future expansion aided by the unique adjustable spring-loaded counterbalanced welded and powder-coated hinge system. The stand is made of formed galvannealed steel. Sides are made of specially machined arched bricks for strength. Kiln comes with hard ceramic element holders, protected thermocouples, and solid peephole plugs. 35-1/4" Wide x 26-1/2" Deep x 27" High (14.6 cubic feet). 3" K23 brick. Direct power connection. Three thermocouples. No charge for 3-phase versions. C-MET-us is listed in the USA & Canada. Cone 10 all voltages.

See the Crating Charges and Export Options here.

See this Checklist before ordering

DaVinci Kilns include Genesis Touchscreen Multi-Zone Control

  • Part Number:
    H-T-K427/00
  • Includes: Nine 22" X 11" X 3/4" Rectangular Shelves (3/4" thick), Six Each 1/2", 1", 2", 4", 6", and 8" Square Posts, and One Pair Heat Resistant Gloves
  • Price:
    $1,060.00
  • Insulation:
    3" K23 Firebrick
  • Sections:
    Three 9" high sections
  • Inside Dimensions:
    34.75"
    Wide x
    26.50"
    Deep x
    27.00"
    High (88.265 cm Wide x 67.31 cm Deep x 68.58 cm High)
  • Outside Dimensions:
    68.00"
    Wide x
    47.00"
    Deep x
    84.00"
    High (172.72 cm Wide x 119.38 cm Deep x 213.36 cm High)
  • Weight:
    885
    lbs (401 kg)
SKU Model Number Watts Volts Phase Fuse Size
K-T-2327/21 T2327-208-1Ph 19,510 208 Single Phase 125 Amp
  • Additional Information
  • Amps: 93.8
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 1/0 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-2327/22 T2327-208-3Ph 19,510 208 Three Phase (Delta) 70 Amp
  • Additional Information
  • Amps: 54.2
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 4 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-2327/31 T2327-240-1Ph 19,510 240 Single Phase 100 Amp
  • Additional Information
  • Amps: 81.3
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 1 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-2327/32 T2327-240-3Ph 19,510 240 Three Phase (Delta) 60 Amp
  • Additional Information
  • Amps: 46.9
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 6 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-2327/62 T2327-480-3Ph 19,510 460-480 Three Phase (Delta) 30 Amp
  • Additional Information
  • Amps: 23.5
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 10 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Three Elements in Wye with 277 Volts per element
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232Q/62 T2327-QD-480-3Ph 19,510 460-480 Three Phase (Delta) 30 Amp
  • Additional Information
  • Amps: 23.5
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 10 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Two 240V Quad Elements in Series
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-2327/41 T2327-220-1Ph 19,510 220-230 Single Phase 125 Amp
  • Additional Information
  • Amps: 88.7
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 1/0 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-2327/52 T2327-380-3PY 19,510 380 Three Phase (Wye) 40 Amp
  • Additional Information
  • Amps: 29.6
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 8 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-2327/82 T2327-400-3PY 19,510 400 Three Phase (Wye) 40 Amp
  • Additional Information
  • Amps: 28.3
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 8 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-2327/72 T2327-415-3PY 19,510 415 Three Phase (Wye) 40 Amp
  • Additional Information
  • Amps: 27.1
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 8 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232B/21 TB2327-208-1Ph (Extra KW Version) 23,010 208 Single Phase 150 Amp
  • Additional Information
  • Amps: 110.6
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 3/0 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232B/22 TB2327-208-3Ph (Extra KW Version) 23,010 208 Three Phase (Delta) 80 Amp
  • Additional Information
  • Amps: 63.9
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 3 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232B/31 TB2327-240-1Ph (Extra KW Version) 23,010 240 Single Phase 125 Amp
  • Additional Information
  • Amps: 95.9
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 1/0 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232B/32 TB2327-240-3Ph (Extra KW Version) 23,010 240 Three Phase (Delta) 70 Amp
  • Additional Information
  • Amps: 55.4
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 4 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232B/62 TB2327-480-3Ph (Extra KW Version) 23,010 460-480 Three Phase (Delta) 40 Amp
  • Additional Information
  • Amps: 27.7
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 8 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Three Elements in Wye with 277 Volts per element
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232N/62 TB2327-QD-480-3Ph (Extra KW Version) 23,010 460-480 Three Phase (Delta) 40 Amp
  • Additional Information
  • Amps: 27.7
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 8 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Two 240V Quad Elements in Series
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232B/41 TB2327-220-1Ph (Extra KW Version) 23,010 220-230 Single Phase 150 Amp
  • Additional Information
  • Amps: 104.6
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 3/0 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232B/52 TB2327-380-3PY (Extra KW Version) 23,010 380 Three Phase (Wye) 50 Amp
  • Additional Information
  • Amps: 34.9
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 6 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232B/82 TB2327-400-3PY (Extra KW Version) 23,010 400 Three Phase (Wye) 50 Amp
  • Additional Information
  • Amps: 33.3
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 6 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232B/72 TB2327-415-3PY (Extra KW Version) 23,010 415 Three Phase (Wye) 40 Amp
  • Additional Information
  • Amps: 32
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 8 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232P/21 T2327-PB-208-1Ph (Powered Bottom) 23,844 208 Single Phase 150 Amp
  • Additional Information
  • Amps: 114.6
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 3/0 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232P/22 T2327-PB-208-3Ph (Powered Bottom) 23,844 208 Three Phase (Delta) 100 Amp
  • Additional Information
  • Amps: 72.9
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 1 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232P/31 T2327-PB-240-1Ph (Powered Bottom) 23,844 240 Single Phase 125 Amp
  • Additional Information
  • Amps: 99.4
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 1/0 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232P/32 T2327-PB-240-3Ph (Powered Bottom) 23,844 240 Three Phase (Delta) 80 Amp
  • Additional Information
  • Amps: 63.2
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 3 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232P/62 T2327-PB-480-3Ph (Powered Bottom) 23,844 460-480 Three Phase (Delta) 40 Amp
  • Additional Information
  • Amps: 31.3
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 8 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Three Elements in Wye with 277 Volts per element
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232S/62 T2327-QD-PB-480-3Ph (Powered Bottom) 23,844 460-480 Three Phase (Delta) 40 Amp
  • Additional Information
  • Amps: 31.6
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 8 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Two 240V Quad Elements in Series
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232P/41 T2327-PB-220-1Ph (Powered Bottom) 23,844 220-230 Single Phase 150 Amp
  • Additional Information
  • Amps: 108.4
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 3/0 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232P/52 T2327-PB-380-3PY (Powered Bottom) 23,844 380 Three Phase (Wye) 70 Amp
  • Additional Information
  • Amps: 49.3
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 4 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232P/82 T2327-PB-400-3PY (Powered Bottom) 23,844 400 Three Phase (Wye) 60 Amp
  • Additional Information
  • Amps: 47.1
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 6 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232P/72 T2327-PB-415-3PY (Powered Bottom) 23,844 415 Three Phase (Wye) 60 Amp
  • Additional Information
  • Amps: 45.1
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 6 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232W/21 TB2327-PB-208-1Ph (Powered Bottom, Extra Power) 28,123 208 Single Phase 175 Amp
  • Additional Information
  • Amps: 135.2
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 4/0 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232W/22 TB2327-PB-208-3Ph (Powered Bottom, Extra Power) 28,123 208 Three Phase (Delta) 100 Amp
  • Additional Information
  • Amps: 86
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 1 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232W/31 TB2327-PB-240-1Ph (Powered Bottom, Extra Power) 28,123 240 Single Phase 150 Amp
  • Additional Information
  • Amps: 117.2
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 3/0 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232W/32 TB2327-PB-240-3Ph (Powered Bottom, Extra Power) 28,123 240 Three Phase (Delta) 100 Amp
  • Additional Information
  • Amps: 74.6
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 1 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232W/62 TB2327-PB-480-3Ph (Powered Bottom, Extra Power) 28,123 460-480 Three Phase (Delta) 50 Amp
  • Additional Information
  • Amps: 36.9
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 6 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Three Elements in Wye with 277 Volts per element
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232T/62 TB2327-QD-PB-480-3Ph (Powered Bottom, Extra Power) 28,123 460-480 Three Phase (Delta) 50 Amp
  • Additional Information
  • Amps: 37.3
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 6 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Two 240V Quad Elements in Series
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232W/41 TB2327-PB-220-1Ph (Powered Bottom, Extra Power) 28,123 220-230 Single Phase 175 Amp
  • Additional Information
  • Amps: 127.8
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 4/0 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232W/52 TB2327-PB-380-3PY (Powered Bottom, Extra Power) 28,123 380 Three Phase (Wye) 80 Amp
  • Additional Information
  • Amps: 58.1
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 3 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232W/82 TB2327-PB-400-3PY (Powered Bottom, Extra Power) 28,123 400 Three Phase (Wye) 70 Amp
  • Additional Information
  • Amps: 55.6
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 4 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):
K-T-232W/72 TB2327-PB-415-3PY (Powered Bottom, Extra Power) 28,123 415 Three Phase (Wye) 70 Amp
  • Additional Information
  • Amps: 53.3
  • Wire Connection: Direct Wire Connection (no cord)
  • Wire Gauge for Connection: 4 Ga
  • Branch Fusing: Branch Fused
  • Element Wiring: Parallel
  • Max Temperature: Cone 10, 2350F, 1290C
  • Price: $11,155
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):

Control

The Genesis control includes a touchscreen interface and WIFI connectivity. The intuitive interface is easy to use and understand. A free phone app allows you to monitor your kiln remotely.
EVEN FIRING. MAKES LOADING MORE FLEXIBLE. ADJUSTS FOR ELEMENT AGING. No need to pay extra for this important feature! Zone control on an electric kiln gives you the utmost controllable temperature uniformity. The kiln control separately measures temperatures in the bottom, middle, and top of the ceramic kiln and automatically adjusts the heat output of three kiln zones during the entire glaze or bisque firing.
PROFESSIONAL AND CLEAN LAYOUT. DaVinci Panels are wired to industrial standards with a good clean wire layout.
ALLOWS THE SECTIONS TO PLUG IN WHILE SEPARATE FROM THE KILN. The control panel is mounted on a stand away from the kiln.

Durability

KEEP YOUR WORK CLEAN. Ceramic protection tubes protect the end of the thermocouple. Keeps the oxide dust from the thermocouple tip from getting into the kiln while firing.
HEAVY-DUTY. Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
NO PINS TO REPLACE AND DAMAGE YOUR FIREBRICK! Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
EXTRA SPACE GIVES YOUR WORK BREATHING ROOM. Arched sides on DaVinci kilns are very strong and promote good air circulation
STRONG PERIMETER FOR THE DAVINCI LID. A unique welded rigid frame supports the entire lid on a DaVinci kiln.
Welded heavy-duty stand supports heavy loads. Alumized top sheet reflects heat.
NO CRIMPING! EASY TO CHANGE. Industrial-grade ceramic terminal blocks make changing elements easy. All contact between elements and wire lugs is over a wide surface of heavily torqued stainless steel washers. Wires are not crimped to element ends as in some other brands. This means you can change elements yourself without buying an expensive tool or hiring a kiln repair person.
STOP BREAKING PEEPHOLE PLUGS. Solid large non-tapered peepholes allow a wider view into the kiln. The peephole plugs are made from solid ceramic and are not as fragile as hollow-type plugs used on competitors' kilns.
KEEP YOUR KILN LOOKING NEW. Corrosion resistant materials and methods result in a long-lasting kiln.

Performance

WHEN YOU NEED EXTRA POWER FOR DENSE LOADS
WHEN YOU NEED EXTRA POWER FOR DENSE LOADS

Ease of Use

EASY-LIFT LID SAVES ON WEAR AND TEAR. All but the T3400 DaVinci lids can easily be lifted by one person. T3400 models need two persons to lift.

Serviceability

EXPAND AND CONTRACT YOUR DAVINCI KILN WITH THE ADJUSTABLE HINGE. Sectional kiln construction makes DaVinci kilns easy to move, set up and disassemble for maintenance. Kiln Sections all plug into a separate control panel making the kiln easy to take apart and reconfigure.

Support

THIS IS REALLY IMPORTANT WHEN YOU CONSIDER THE ELECTRONIC CONTROL. Most L&L Kilns have a three-year limited warranty.
LET OUR EXPERIENCE WORK FOR YOU. The combined experience at L&L Kilns in kilns, ceramics, electrical engineering, and process engineering is unsurpassed. We work as a team to help you get your answers and help.
LIKE HAVING A KILN LIBRARY AT YOUR FINGERTIPS. The combined experience at L&L Kilns in kilns, ceramics, electrical engineering, and process engineering is unsurpassed. We provide a visual parts list with photographs, part numbers, prices, and helpful information to reduce confusion when ordering parts. We also include well-vetted information and wisdom from our industry partners to ensure our customers have access to all the basic information necessary to be successful from the first firing.

Safety

CERTIFIED SAFE. Most L&L kilns are MET listed to UL499 standards. Listed kilns include Easy-Fire Pottery Kilns, eQuad-Pro Professional Kilns, eFL Front-Loading Kilns, Jupiter Sectional Kilns, DaVinci Square & Rectangular Production Kilns, School-Master School Kilns, Fuego Home Craft Kilns, and Doll-Test Kilns. Easy-Load Production Front-Loading kilns are MET-Us Listed for the USA only.

Elements

The combination of 1/2" diameter element coils, the doubled surface area of the Quad element design, and superior heat transfer of L&L's patented ceramic element holders, make this the best element system in the world today.
APM elements increase element life in difficult applications

Thermocouples

Type S Platinum Thermocouples are recommended for high fire applications. NOTE: Price of upgrade is per each thermocouple.
Pyrocil thermocouples are sensitive but limited to about 2200°F but offer greater sensitivity to temperature change and so may be appropriate in applications below 2200°F that require sensitivity. NOTE: Price of upgrade is per each thermocouple.

Vents

A Critical component in the longevity of your kiln!The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.
The Vent Control allows you to automatically control the operation of the Vent-Sure kiln vent with the control.

Kiln Furniture

Kiln furniture kits are the recommended set of ceramic shelves, posts, and heat-resistant gloves for each kiln model. These are for loading the work in the kiln.
These safety gloves are perfect for handling hot work when unloading a kiln.

Controls

Solid State Relays are quiet and result in longer element life because the switching time is so fast the elements don’t heat and cool as much the way the will with regular mechanical contactors. The whole system includes heat sinks, special fast acting fuses, cooling fan and extra safety relays.
Electronic High Limit Back Up Control acts as an upper limit back up to the main control. Back up contactors are also available.
Traditional 24-button Keypad control. This control can be substituted for any Genesis full-sized control.

Power

L&L's 480 volt option can include a NEMA 1 control panel
This option helps protect your control from electrical noise
Powered bottoms increase power and can aid uniformity in large kilns

Miscellaneous

Unpowered rings can extend the height of our DaVinci kilns.
This special Seismic Kiln Rack and Brace is designed to prevent a kiln from falling over during an earthquake.

Shipping/Crating

  • Kiln:
    Skid #1: 55in L x 48in W x 47in H | Skid #2: 48in L x 40in W x 84in H
    (
    Skid #1: 140cm L x 122cm W x 119cm H | Skid #2: 122cm L x 102cm W x 213cm H
    )
  • Ship Weight:
    1035
    lbs (469 kg)
  • Kiln with Furniture Kit:
    Skid #1: 55in L x 48in W x 47in H | Skid #2: 48in L x 40in W x 84in H
    (
    Skid #1: 140cm L x 122cm W x 119cm H | Skid #2: 122cm L x 102cm W x 213cm H
    )
  • Ship Weight:
    1155
    lbs (524 kg)
  • Kiln with Vent:
    Skid #1: 55in L x 48in W x 54in H | Skid #2: 48in L x 40in W x 84in H
    (
    Skid #1: 140cm L x 122cm W x 137cm H | Skid #2: 122cm L x 102cm W x 213cm H
    )
  • Ship Weight:
    1050
    lbs (476 kg)
  • Kiln with Vent and Furniture Kit:
    Skid #1: 55in L x 48in W x 58in H | Skid #2: 48in L x 40in W x 84in H
    (
    Skid #1: 140cm L x 122cm W x 147cm H | Skid #2: 122cm L x 102cm W x 213cm H
    )
  • Ship Weight:
    1170
    lbs (531 kg)
  • Packaging:

Turntable View

T2327-D Electric Kiln
Compare L&L Kilns
eFL2635 Front-Loading Studio Kiln X3227 Davinci Electric Kiln Open EL2436 Front-Loading Kiln
Kiln eFL2635 Front-Loading Kiln X3227 Electric Kiln EL2436 Front-Loading Kiln
Description

Studio Front-Loader

Large Rectangular Sectional Kiln

Industrial Grade Front-Loader

Price $12,375.00 $11,335.00 $23,840.00
Type
Volume 13.7 cubic feet 14.5 cubic feet 12.0 cubic feet
Temperature Cone 10, 2350F, 1290C Cone 10, 2350F, 1290C Cone 10, 2350F, 1290C
