L&L 100 Cubic Foot Bell-Lift Production Kiln

Features

Support

Superior Technical Support
The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.
Standard Three-Year Limited Warranty
Most L&L Kilns have a three-year limited warranty.

Durability

Hard Ceramic Element Holders Make L&L Kilns More Durable
Durability, Repairability, Better Heat Transfer
Thermocouple Protection Tubes
Mullite protection tubes extend thermocouple life and keep kiln clean
Arched Sides for Mechanical Strength and Extra Airspace for Uniformity
Arched sides on DaVinci kilns are very strong and promote good air circulation
Welded Angle Iron Stand
Welded heavy-duty stand supports heavy loads. Alumized top sheet reflects heat.
Thick 8 Gauge Thermocouples
Thick 8 gauge thermocouples last a long time.
Proprietary Reflective Coating Hardens & Seals Brick
Special brick coating hardens and seals brick for durability and cleaner operation.
Floor standing Panel with Industrial Wiring
DaVinci Panels are wired to industrial standards with good clean wire layout.
Corrosion Resistant Case
Corrosion resistant materials and methods result in a long-lasting kiln.
Redundant Case Clamps
Three case clamps are redundant safety for your L&L kiln.

Ease of Use

Bell-Lift Kilns: a unique solution to loading a kiln
Load your kiln from all four sides
Solid Wide-View Peephole Plugs
Solid large non-tapered peepholes allow a wider view into the kiln.
Hand Held Control
Handheld control is easy to hold and program.

Performance

Automatic Zone Control
Zone control gives you the utmost in controllable temperature uniformity.
DynaTrol Multi-Program Zone Control
Four preset ceramic programs and six custom programs with eight segments each.
Premium Firebrick
Premium K23 firebrick provides good insulation combined with reasonable durability.

Serviceability

Molded Ceramic Industrial-Grade Element Connection Blocks
Industrial grade ceramic terminal blocks make changing elements easy.
Sectional Kiln Construction for DaVinci Kilns
Sectional kiln construction make DaVinci kilns easy to move, set up and disassemble for maintenance.
Floor-Standing Panel Away from Kiln
The control panel is mounted on a stand away form the kiln.
Reversible Bottoms
The bottom can be easily reversed in case of a firing mishap.

Safety

Mercury Free Power Contactors
Power Relays are mercury-free to comply with increasing regulation and concern about mercury in schools
On-Off Switch and Panel Fuse
All L&L Kilns come with an on-off switch

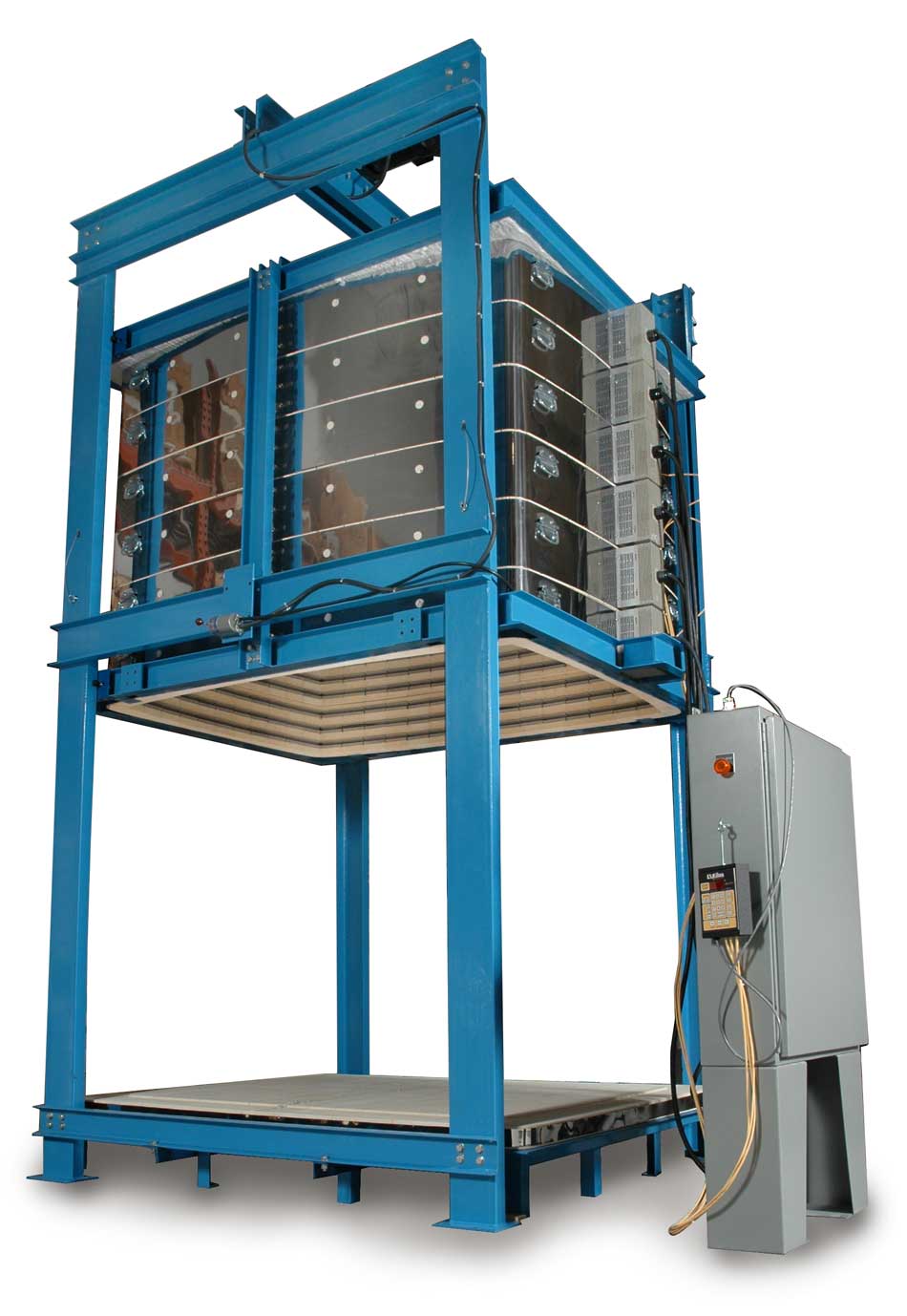

Models up to 100 Cubic Feet (2.83 Cubic Meters) - A Unique Industrial Solution

L&L Kiln Mfg., Inc. makes large-format industrial-grade Bell-Lift kilns designed for industrial ceramics and other industrial applications. One model is 100 cubic feet (66” wide by 47” deep by 54” high). Larger and smaller models can be built. The kiln reaches 2350°F (1290°C or cone 10). It is easy to load, easy to maintain and very economical. The welded metal frame breaks down for easy shipping (the entire kiln can fit on one flatbed truck or a shipping container). Assembly is straightforward.

Industrial Kiln with Pottery Kiln

Three Jumbo Bell-Lift Kilns used for ceramic armor.

Kiln Models

Model No Cubic Ft Inside Dim (Inches) Description
TB644754 100 66" Wide x 48-1/2 Deep x 54" High
