JD2927-JH JH Series - Special Kilns for Crystalline Glaze

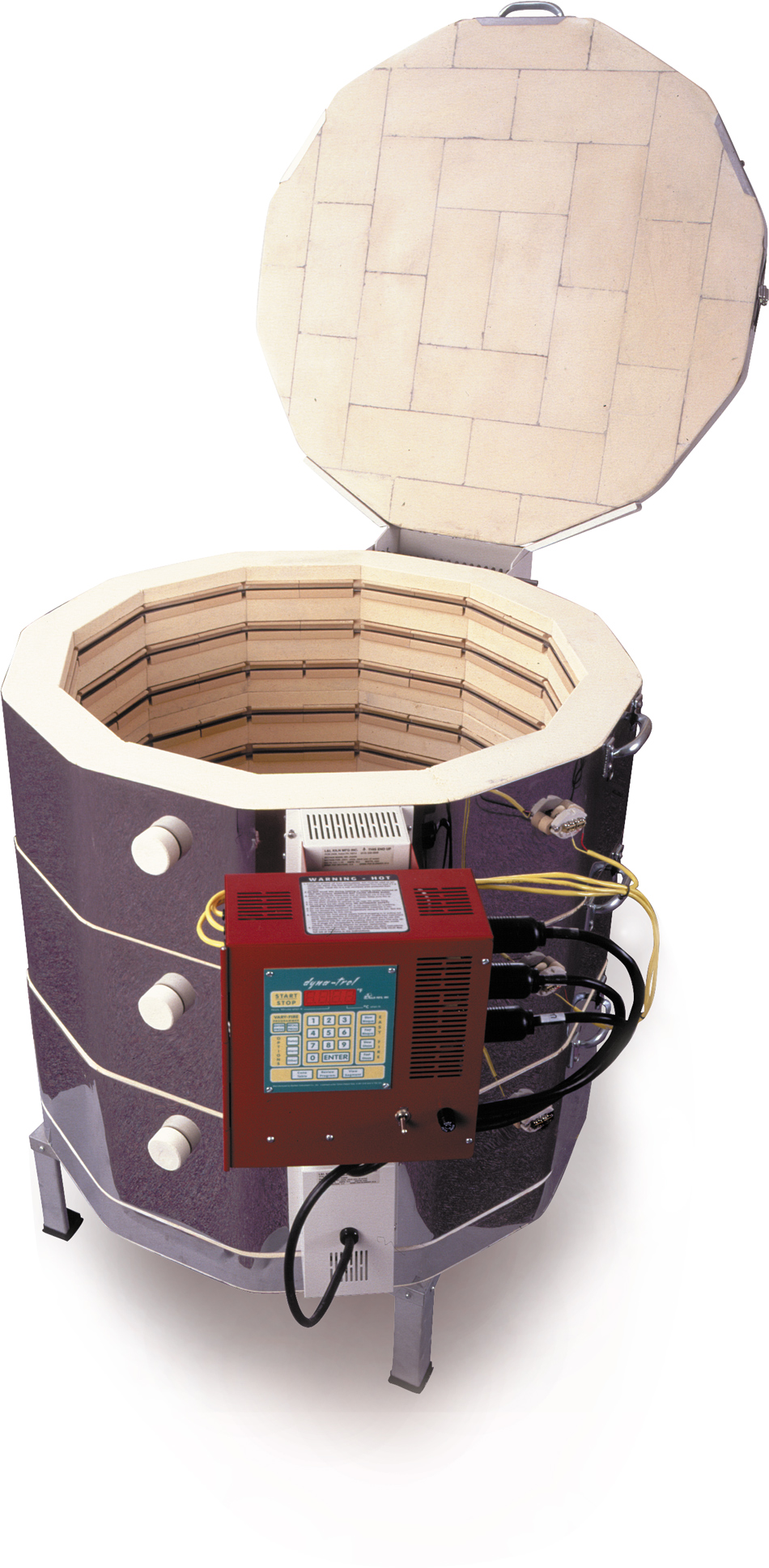

This is a JD2927. It does not show the Quad elements on the larger Floor Standaing DaVinci control panel.
Click on image to enlarge
Furniture Kit
H-J-K292/00 ($635.00)
Eight 25-1/2" Half Round Shelves, Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, Heat Resistant Gloves and 5 pounds Cone 10 Kiln Wash
Features
Performance
Durability
Ease of Use
Support
Serviceability
Accessories
Control
Elements & Power
Books
General
Vent
JH Series Crystalline Glaze Kiln with extra power, K25 brick, Quad Super Heavy Duty Elements, 2-1/2 brick except with a 3" top, type S thermocouples.
Basic Information
2-1/2" (63 mm) K25 2500F Firebrick, 3" (76mm) Top
Top-Loading
Three 9" high sections
12 sides
10.3 cubic ft (292 Liters)
385 pounds (174 Kg)
29" Diam x 27" High
222.9 cm Diam x 68.6 cm High
222.9 cm Diam x 68.6 cm High
40" Wide x 50" Deep x 40" High
101.6 cm Wide x 127 cm Deep x 101.6 cm High
101.6 cm Wide x 127 cm Deep x 101.6 cm High
Description
Three 9” high sections stack on top of each other. The hinge and element connection box hold the entire kiln together as an integrated unit. The kiln is very easy to assemble and disassemble. The kiln sections plug into the separate control panel. More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Spring loaded "Easy-Lift" lid opens with a feather-lite touch. The strength of the hinge allows the lid to rest back away from the opening without a support arm that would get in the way of loading the kiln.
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Three total: one per section.
Download (PDF)
Download (669.21 KB, PDF)
Control Specifications
Three control zones with two separate thermocouples. More about zone control.
Type S Thermocouple in an Alumina Protection Tube (4.75" / 120mm)
Mounted on panel
Floor-mount Plug-in.
Control box cover is hinged for easy access to inside of control box. Entire control box is removable.
Part Number
Watts
Volts
Phase
Fuse Size
K-A-292J/21
18039 W
208 V
Single Phase
125 Amp
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps86.7
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection1/0 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,600.00
K-A-292J/22
18039 W
208 V
Three Phase (Delta)
70 Amp
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps50.1
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection4 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,600.00
K-A-292J/41
18039 W
220-230 V
Single Phase
125 Amp
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps82
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection1/0 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for non-USA markets only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,600.00
K-A-292J/31
18039 W
240 V
Single Phase
100 Amp
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps75.2
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection1 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,600.00
K-A-292J/32
18039 W
240 V
Three Phase (Delta)
60 Amp
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps43.5
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection6 Ga
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,600.00
K-A-292J/52
18039 W
380-415 V
Three Phase (Wye)
Maximum Temperature
- Max TemperatureCone 12, 2400F, 1315C
Additional Electrical Information
- Amps
- Max TemperatureCone 12, 2400F, 1315C
- Wire ConnectionDirect Wire
- Wire Ga for Connection
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for non-USA markets only
- CE
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$5,600.00
44" Wide x 44" Deep x 44" High
111 cm Wide x 111 cm Deep x 111 cm High
111 cm Wide x 111 cm Deep x 111 cm High
44" Wide x 44" Deep x 48" High
111 cm Wide x 111 cm Deep x 121 cm High
111 cm Wide x 111 cm Deep x 121 cm High
44" Wide x 44" Deep x 60" High
111 cm Wide x 111 cm Deep x 152 cm High
111 cm Wide x 111 cm Deep x 152 cm High
44" Wide x 44" Deep x 60" High
111 cm Wide x 111 cm Deep x 152 cm High
111 cm Wide x 111 cm Deep x 152 cm High
405 lbs (184 kg)
+ Kit 500 lbs (227 kg)
+ Vent 430 lbs (195 kg)
+ Kit + Vent 525 lbs (238 kg)
Skidded Carton with Foam-in-Place packaging
