Furniture Kit

H-J-K23X/30 ($340.00)
Furniture Kit for 22-3/8" Diam x 18" High Jupiter Kilns

One 20" Full Round Shelf and Four 20" Half Round Shelves, Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, Heat Resistant Gloves and 5 pounds Cone 10 Kiln Wash

Questions? Quote?

Send an email to sales@hotkilns.com or call 800-750-8350.

JD230-3-EZ

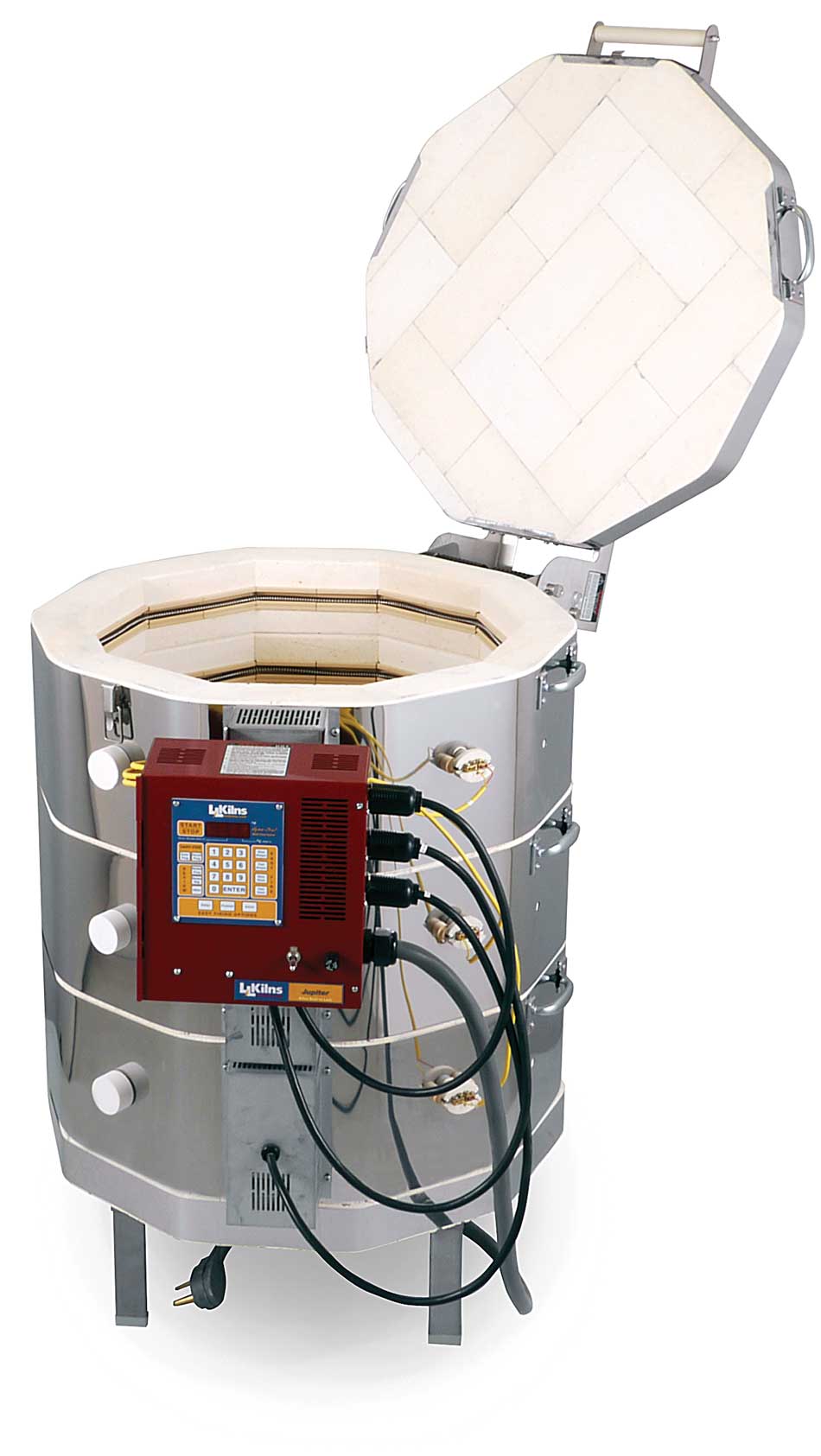

Jupiter Automatic Kiln with Multi-Program Zoned DynaTrol, 3" of brick, heavy-duty series elements, stainless steel spring hinge, modular construction. Extra power (48 amps) with E23T elements.

$3065
3" (76 mm) K23 Premium Firebrick
Top-Loading
Three 9" high sections
10 sides
6.7 cubic ft (190 Liters)
365 pounds (165 Kg)
22-3/8" Diam x 27" High
32" Wide x 45" Deep x 41" High
81.3 cm Wide x 114.3 cm Deep x 104.1 cm High
Three 9” high sections stack on top of each other. The hinge and element connection box hold the entire kiln together as an integrated unit. The kiln is very easy to assemble and disassemble. The kiln sections plug into the separate control panel.  More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Spring loaded "Easy-Lift" lid opens with a feather-lite touch. The strength of the hinge allows the lid to rest back away from the opening without a support arm that would get in the way of loading the kiln.
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Three total: one per section.
Download (PDF)
Three control zones with three separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on control panel
All controls and components are mounted in a separate control panel that is mounted to the element connection boxes with an air space in between. The control panel is hinged for easy access and maintenance. Each kiln section plugs into the control box. Control box can be easily removed for servicing. On/off switch and control fuse are included. More about Jupiter plug-in control panel.
Control box cover is hinged for easy access to inside of control box. Entire control box is removable.

Performance

Zone control gives you the utmost in controllable temperature uniformity.
Four preset ceramic programs and six custom programs with eight segments each.
K23 firebrick combines good insulation with strength

Durability

Corrosion resistant materials and methods result in a long-lasting kiln.
Durability, Repairability, Better Heat Transfer
Special brick coating hardens and seals brick for durability and cleaner operation.
Three case clamps are redundant safety for your L&L kiln.
Aluminized stands are extremely strong and corrosion resistant.
Stainless Steel clips help the lid stay secure and durable.
Mullite protection tubes extend thermocouple life and keep kiln clean
Thick 8 gauge thermocouples last a long time.

Ease of Use

Feather-light spring hinge allows full access without a side support bar - for easy loading.
Solid large non-tapered peepholes allow a wider view into the kiln.
Even the largest DaVinci lids can easily be lifted by one person.

Support

The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.

Serviceability

Remove two screws and a few plug-on wires and the panel disconnects in 5 minutes.
Wiring is neatly laid out using National Electrical Code and UL499 Standards
Industrial grade ceramic terminal blocks make changing elements easy.
The bottom can be easily reversed in case of a firing mishap.
Sectional kiln construction make Jupiter kilns easy to move, set up and disassemble for maintenance.

Safety

Most L&L kilns are MET listed to UL499 standards

Control

This option helps protect your control from electrical noise

The Eurotherm 2604 is an indutrial-grade PID control with two or three zone cabability built in.

Control, monitor and record data for up to 10 kilns from your computer for a one-time price.

Pyrocil thermocouples are sensitive but limited to about 2200°F and require sensitivity

Type S Platinum Thermocouples are recommended for high fire applications

Elements & Power

L&L's 480 volt option can include a NEMA 1 control panel and a fused disconnect switch

APM elements increase element life in difficult applications

Powered bottoms increase power and can aid uniformity in large kilns

The Quad element design, initially designed for the eQuad-Pro and JH Series, is available on most other L&L kilns as an option. This improves element life by offering the largest element in the industry for top-loading craft kilns combined with L&L's patented hard ceramic element holders.

General

Kiln furniture kits are the recommended set of ceramic shelves, posts and kiln wash that go with each kiln model. These are for loading the work in the kiln.

Cone 10 Kiln wash is used to coat shelves to prevent sticking of glaze.

Unpowered rings can extend the height of our Jupiter kilns.

Dark viewing glasses are necessary for viewing into the kiln when it is hot

These safety gloves are perfect for handling hot work when unloading a kiln.

Vent

The L&L Vent-Sure Kiln Vent is the most powerful downdraft kiln vent on the market today.

Part Number
Watts
Volts
Phase
Fuse Size
K-A-231Z/21
9980 W
208 V
Single Phase
60 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps48
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
  • Wire Ga for Connection6 Ga
  • Branch Fusing

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$0.00
