J18 Jupiter Manual Kilns - Customizable - Up to 45" High
Click on image to enlarge
Furniture Kit
H-J-K180/00 ($295.00)
One 15-1/2" Full Round Shelf and Four 15-1/2" Half Round Shelves, Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, Heat Resistant Gloves and 5 pounds Cone 10 Kiln Wash
Features
Performance
Durability
Ease of Use
Support
Serviceability
Safety

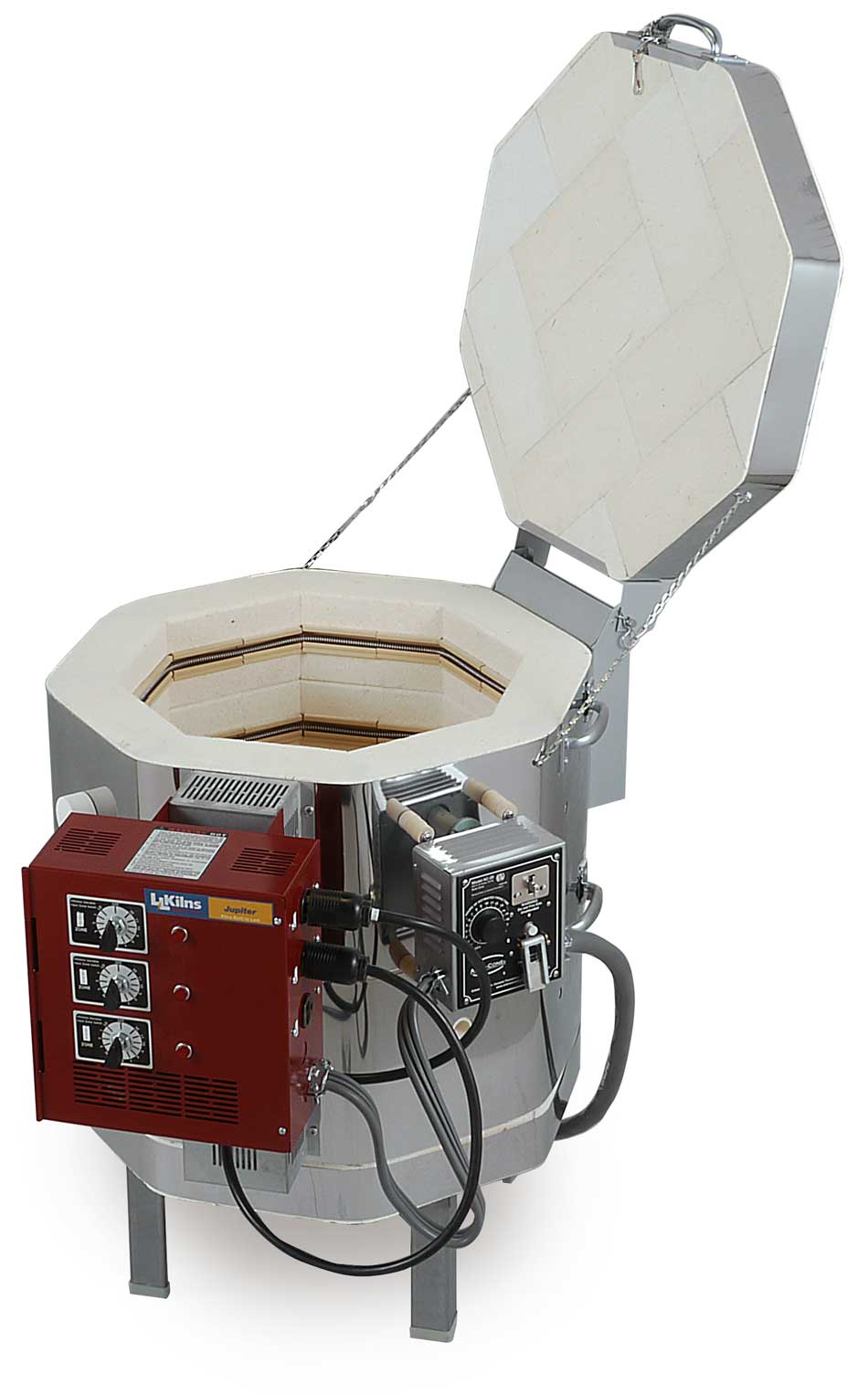

Jupiter Manual Kiln with externally mounted Kiln Sitter/Timer, 2-1/2" of brick, heavy-duty series elements, simple hinge, modular construction
Basic Information
2-1/2" (63 mm) K23 Premium Firebrick
Top-Loading
Two 9" high sections
8 sides
2.6 cubic ft (74 Liters)
190 pounds (86 Kg)
17-1/2" Diam x 18" High
28" Wide x 39" Deep x 31"High
71.1 cm Wide x 322.9 cm Deep x 78.7 cm High
71.1 cm Wide x 322.9 cm Deep x 78.7 cm High
Description
Two 9” high sections stack on top of each other. The hinge and element connection box hold the entire kiln together as an integrated unit. The kiln is very easy to assemble and disassemble. The kiln sections plug into the separate control panel. More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Simple strong hinge with chain for door support
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Two total: one per section.
Download (PDF)
Download (281.57 KB, PDF)
Control Specifications
Cone Sitter/Timer for simple control
Two control zones with two separate thermocouples. More about zone control.
No thermocouples unless included with a pyrometer system
Mounted on panel
All controls and components are mounted in a separate control panel that is mounted to the element connection boxes with an air space in between. The control panel is hinged for easy access and maintenance. Each kiln section plugs into the control box. Control box can be easily removed for servicing. On/off switch and control fuse are included. More about Jupiter plug-in control panel.
Control box cover is hinged for easy access to inside of control box. Entire control box is removable.
Part Number
Watts
Volts
Phase
Fuse Size
K-J-180H/21
5520 W
208 V
Single Phase
30 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps26.5
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
- Wire Ga for Connection10 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$1,625.00
K-J-180H/22
5520 W
208 V
Three Phase (Delta)
30 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps23
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionA six foot cord with a 50 amp NEMA 15-50 three phase plug. Neutral is not used.
- Wire Ga for Connection10 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$1,625.00
K-J-180H/41
5520 W
220-230 V
Single Phase
30 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps25.1
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
- Wire Ga for Connection10 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for non-USA markets only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$1,625.00
K-J-180H/31
5520 W
240 V
Single Phase
30 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps23
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
- Wire Ga for Connection10 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$1,625.00
K-J-180H/32
5520 W
240 V
Three Phase (Delta)
30 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps19.9
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionA six foot cord with a 50 amp NEMA 15-50 three phase plug. Neutral is not used.
- Wire Ga for Connection10 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$1,625.00
K-J-180H/52
5520 W
380-415 V
Three Phase (Wye)
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionA six foot cord with a 50 amp NEMA 15-50 three phase plug. Neutral is not used.
- Wire Ga for Connection
- Branch Fusing
Certifications and Markets
- InternationalMade for non-USA markets only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$1,625.00
36" Wide x 36" Deep x 38" High
91 cm Wide x 91 cm Deep x 96 cm High
91 cm Wide x 91 cm Deep x 96 cm High
36" Wide x 36" Deep x 55" High
91 cm Wide x 91 cm Deep x 139 cm High
91 cm Wide x 91 cm Deep x 139 cm High
36" Wide x 36" Deep x 60" High
91 cm Wide x 91 cm Deep x 152 cm High
91 cm Wide x 91 cm Deep x 152 cm High
36" Wide x 36" Deep x 60" High
91 cm Wide x 91 cm Deep x 152 cm High
91 cm Wide x 91 cm Deep x 152 cm High
200 lbs (91 kg)
+ Kit 245 lbs (111 kg)
+ Vent 225 lbs (102 kg)
+ Kit + Vent 270 lbs (122 kg)
Skidded Carton with Foam-in-Place packaging
