e23S-3-eu Easy-Fire Electric Ceramic Pottery Kilns

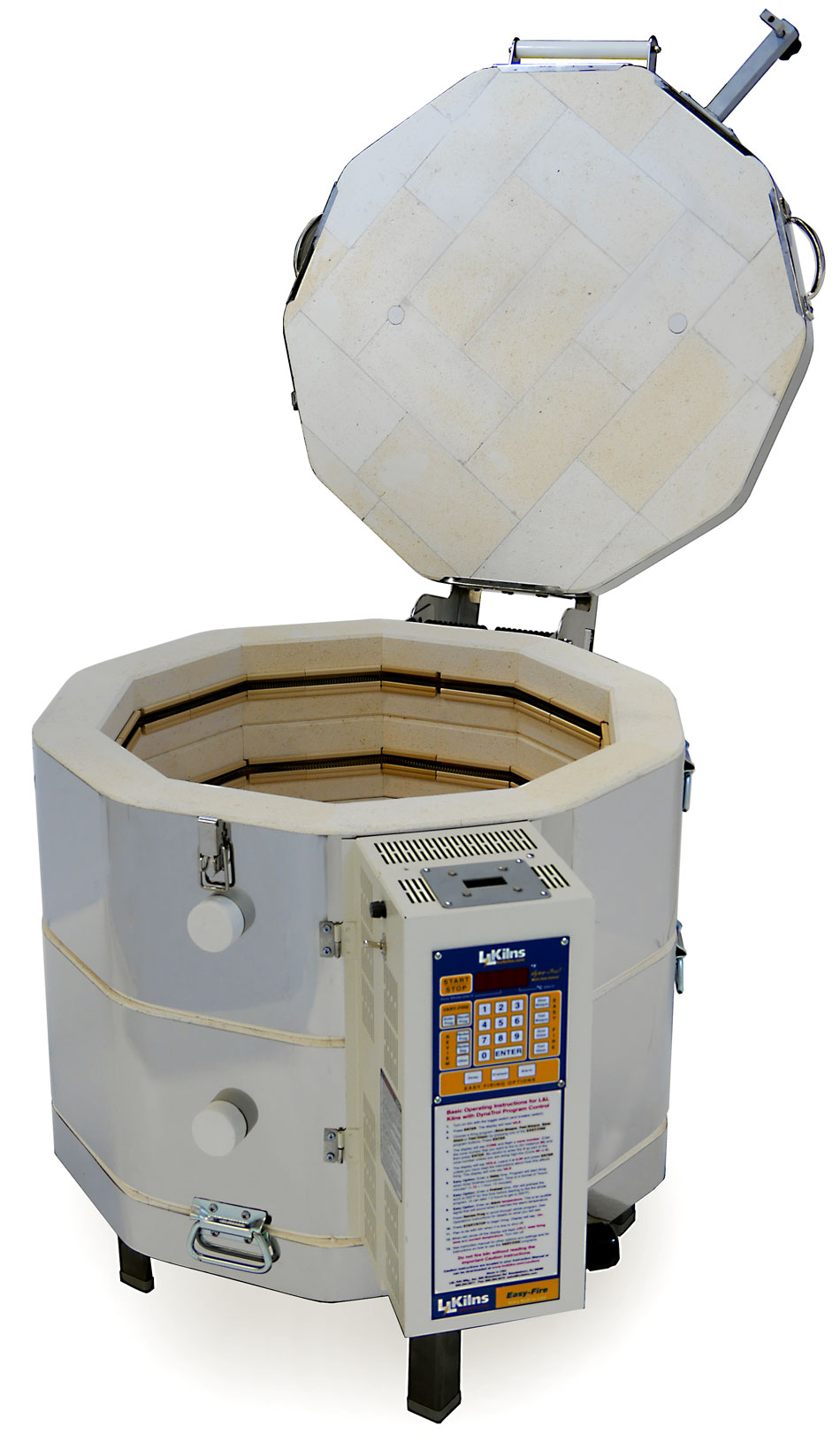

This photo does not have the latest white control panel. Note the door switch mechanism.
Click on image to enlarge
Furniture Kit
H-E-K23S/30 ($335.00)
One 20" Full Round Shelf and Four 20" Half Round Shelves, Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, Heat resistant gloves and 5 pounds cone 10 kiln wash
Features
Performance
Durability
Ease of Use
Support
Serviceability
Accessories
Elements & Power
Books
General
Control
Vent
Easy-Fire Automatic Kiln with with Multi-Program Zoned DynaTrol, 3" brick, European version with power shut-off switch, lid vents
Basic Information
3" (76 mm) K23 Premium Firebrick
Top-Loading
Two 9" high sections
10 sides
4.4 cubic ft (125 Liters)
290 pounds (131 Kg)
22-3/8" Diam x 18" High
32" Wide x 45" Deep x 31" High
81.3 cm Wide x 114.3 cm Deep x 78.7 cm High
81.3 cm Wide x 114.3 cm Deep x 78.7 cm High
Description
Two 9” high sections stack on top of each other. The hinge and element connection box hold the entire kiln together as an integrated unit. The kiln is very easy to assemble and disassemble. All wires are marked or color coded and attach to pull-off terminal strips. More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Spring loaded "Easy-Lift" lid opens with a feather-lite touch. The strength of the hinge allows the lid to rest back away from the opening without a support arm that would get in the way of loading the kiln.
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Four total: one per section plus two in the lid for ventilation.
Download (PDF)
Download (316.24 KB, PDF)
Control Specifications
Two control zones with two separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on panel
All controls and components are mounted in a separate control panel that is piggy-backed to the element connection box. A layer of insulation and this separation helps keep the controls cool. The control panel and element box are hinged for easy access and maintenance. Control box can be easily removed for servicing. On/off switch and control fuse are included. More about Easy-Fire control panel.
Control box drops down perpendicular to kiln for easy access to wiring and controls. All electrical wires are color coded or numbered.
Part Number
Watts
Volts
Phase
Fuse Size
K-E-23SE/41
8860 W
220-230 V
Single Phase
50 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps39.4
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection10 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for EU market
- CECertified to CE Directives
- UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$0.00
44" Wide x 44" Deep x 41" High
111 cm Wide x 111 cm Deep x 104 cm High
111 cm Wide x 111 cm Deep x 104 cm High
44" Wide x 44" Deep x 55" High
111 cm Wide x 111 cm Deep x 139 cm High
111 cm Wide x 111 cm Deep x 139 cm High
44" Wide x 44" Deep x 60" High
111 cm Wide x 111 cm Deep x 152 cm High
111 cm Wide x 111 cm Deep x 152 cm High
44" Wide x 44" Deep x 60" High
111 cm Wide x 111 cm Deep x 152 cm High
111 cm Wide x 111 cm Deep x 152 cm High
305 lbs (138 kg)
+ Kit 376 lbs (171 kg)
+ Vent 330 lbs (150 kg)
+ Kit + Vent 401 lbs (182 kg)
Skidded Carton with Foam-in-Place packaging
