e23S-3 Easy-Fire Pottery Kiln

Click on image to enlarge

e23S-3 Easy-Fire Pottery Kiln

Furniture Kit

 H-E-K23S/30 ($350.00)
Furniture Kit for e23S-3 Easy-Fire (3" brick)

One 20" Full Round Shelf and Four 20" Half Round Shelves (3/4" thick), Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, Heat Resistant Gloves and 1 pound of Cone 10 Kiln Wash

Questions? Quote?

Send an email to sales@hotkilns.com or
call 800-750-8350.

e23S-3 Pottery Kiln

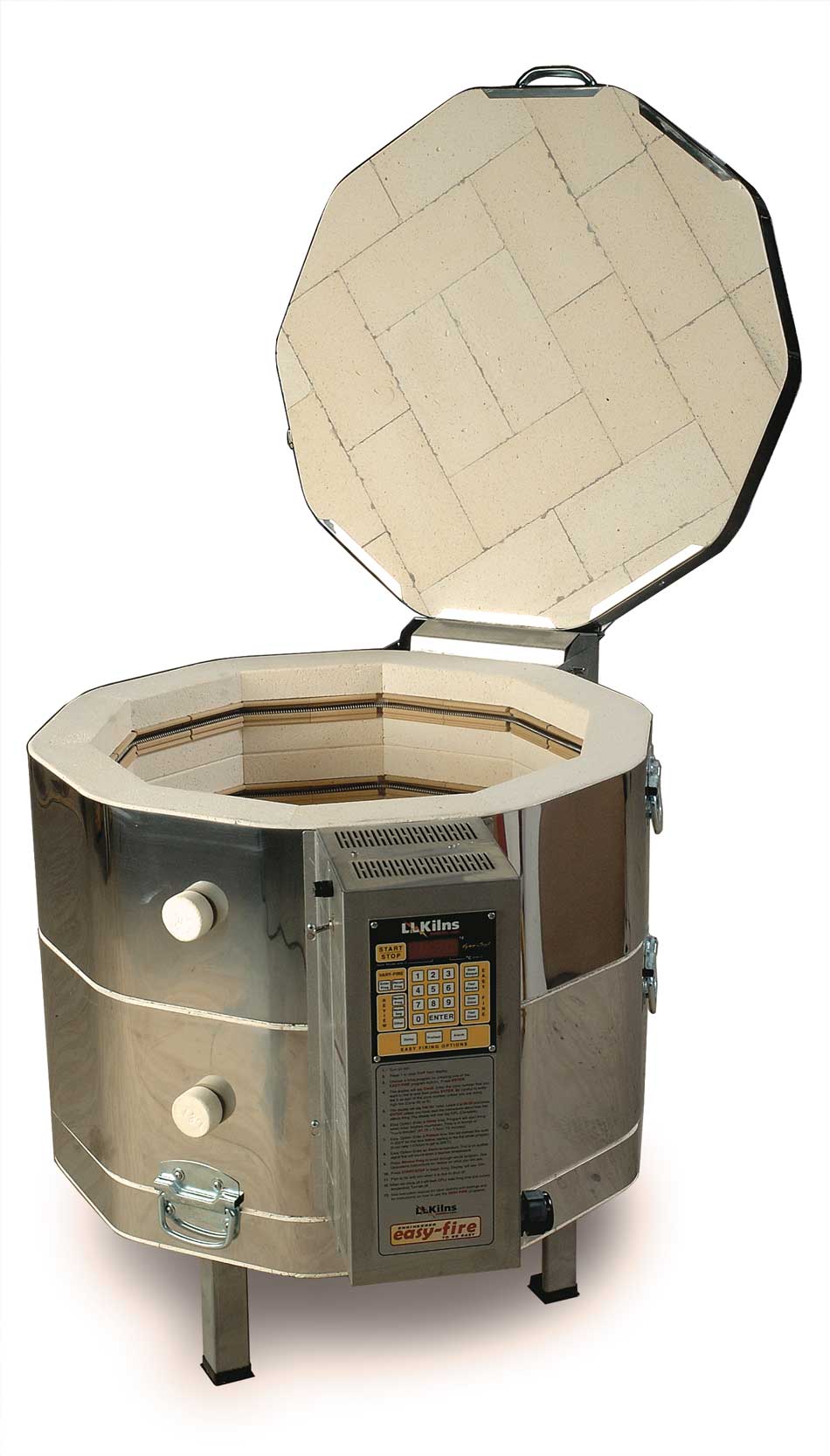

Model e23S-3 Easy-Fire Automatic Kiln with with Multi-Program Two-Zoned DynaTrol mounted in an easy-open cool-firing piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, thermocouple protection tubes, strong solid-top stand, easy-lift spring hinge, and solid peephole plugs. 22-3/8" diameter by 18" high (4.4 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.

$2620

More images

e23S-3 Easy-Fire Pottery Kiln inside photo
e23S-3 Easy-Fire Pottery Kiln open from right
e23S-3 Easy-Fire Pottery Kiln open from left
e23S-3 Easy-Fire Pottery Kiln open from left
e23S-3 Easy-Fire Pottery Kiln closed from left
e23S-3 Easy-Fire Pottery Kiln closed from front
e23S-3 Easy-Fire Pottery Kiln closed from right
Inside of an e23S-3 showing thermocouples and protection tubes
Detail of inside
Notice how the dense ceramic element holder transmits and reradiates the energy of the elements
This shows the control panel open in the maintenance position. Notice how it stays perpendicular to the kiln and is secure.
Both panels open
The element connection block and thermocouples
Infrared photos show how L&L's panel stays cool
DynaTrol features four Easy-Fire programs and six Vary-Fire user-defined programs plus zone control
The benefits of zone control
Easy access On/Off Switch and Control Fuse
Peephole with our unique straight and solid peephole plug shown
Chest Handles on each kiln section
Detail showing ceramic handle on spring hinge, lockable latch, on/off switch on side of panel, and peephole plug
Detail showing ceramic handle on spring hinge, lockable latch, on/off switch on side of panel, and peephole plug
Heavy-duty 14 gauge aluminized steel full-support stand shown with stainless vent bypass collection box and leg detail
Quad Element Option
3" (76 mm) K23 Premium Firebrick
Top-Loading
Two 9" high sections
10 sides
4.4 cubic ft (125 Liters)
290 pounds (131 Kg)
22-3/8" Diam x 18" High
31" Wide x 42" Deep x 33" High
78.7 cm Wide x 106.7 cm Deep x 83.8 cm High
Download (PDF)
Part Number
Watts
Volts
Phase
Fuse Size
K-E-23S3/31
9460 W
240 V
Single Phase
50 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps39.4
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
  • Wire Ga for Connection6 Ga
  • Branch FusingNo

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

K-E-23S3/32
9460 W
240 V
Three Phase (Delta)
50 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps34.1
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionA six foot cord with a 50 amp NEMA 15-50 three phase plug. Neutral is not used.
  • Wire Ga for Connection6 Ga
  • Branch FusingNo

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

K-E-23S3/21
8320 W
208 V
Single Phase
50 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps40
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
  • Wire Ga for Connection6 Ga
  • Branch FusingNo

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

K-E-23S3/22
8320 W
208 V
Three Phase (Delta)
50 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps34.6
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionA six foot cord with a 50 amp NEMA 15-50 three phase plug. Neutral is not used.
  • Wire Ga for Connection6 Ga
  • Branch FusingNo

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

K-E-23S3/41
8660 W
220-230 V
Single Phase
50 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

  • Amps39.4
  • Max TemperatureCone 10, 2350F, 1290C
  • Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
  • Wire Ga for Connection6 Ga
  • Branch FusingNo

Certifications and Markets

  • InternationalMade for all markets except USA and EU
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

K-E-23S3/52
8660 W
380-415 V
Three Phase (Wye)
25 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

Certifications and Markets

  • InternationalMade for all markets except USA and EU
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

Two 9” high sections stack on top of each other. The hinge and element connection box hold the entire kiln together as an integrated unit. The kiln is very easy to assemble and disassemble. All wires are marked or color coded and attach to pull-off terminal strips.  More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Spring loaded "Easy-Lift" lid opens with a feather-lite touch. The strength of the hinge allows the lid to rest back away from the opening without a support arm that would get in the way of loading the kiln.
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Two total: one per section.
Two control zones with two separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on control panel
The control panel is angled for easy viewing and operation of the DynaTrol. All controls and components are mounted in a separate control panel that is piggy-backed on top of the element connection box. A layer of insulation and this separation helps keep the controls cool for longer life. The control panel and element box are hinged for easy access and maintenance. Moreover, when the top control panel is in the open position it rigidly stays in a perpendicular position making servicing safer and easier than with other make kilns. Also the control box can be easily removed for servicing. On/off switch and control fuse are included. More about Easy-Fire control panel.
Control box drops down perpendicular to kiln for easy access to wiring and controls. All electrical wires are color coded or numbered.

Durability

Corrosion resistant materials and methods result in a long-lasting kiln.
Three case clamps per 9" high kiln section are redundant safety for your L&L kiln.
Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. No pins! The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
Industrial grade ceramic terminal blocks make changing elements easy.
Special brick coating hardens and seals brick for durability and cleaner operation.
Aluminized stands are extremely strong and corrosion resistant. The offer solid support under the kiln - unlike spot-welded angle stands that are common in the industry.
Stainless Steel clips help the lid stay secure and durable. This extra step ensures that the lid won't slip out of the stainless steel band.
Mullite protection tubes extend thermocouple life and keep kiln clean. The mullite protection tube keeps the metal oxides of the thermocouple tip from dropping off and contaminating your work.
Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.

Performance

Zone control gives you the utmost in controllable temperature uniformity. The DynaTrol separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three zones during the entire firing.
DynaTrol with 4 Easy-Fire programs (Slow Bisque, Fast Bisque, Slow Glaze, Fast Glaze), 6 custom programs, PreHeat, Delay, Program, Segment Review, and Diagnostics. Zone control included on most kilns.
K23 firebrick combines good insulation with strength

Ease of Use

Feather-light spring hinge allows full access without a side support bar - for easy loading. Standard on all 10 and 10 sided polygonal kilns.
Angled control panel makes viewing control and programming easier. (Easy-Fire only)
Solid large non-tapered peepholes allow a wider view into the kiln.

Support

Most L&L Kilns have a three-year limited warranty.
The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.

Serviceability

Remove two screws and a few plug-on wires and the panel disconnects in 5 minutes.
The bottom can be easily reversed in case of a firing mishap.
Sectional kiln construction makes kilns easy to move, set up and disassemble for maintenance.

Safety

Most L&L kilns are MET listed to UL499 standards. Listed kilns include Easy-Fire. Jupiter. DaVinci, School-Master, Liberty-Belle. Hercules & Easy-Load kilns areMET-Us Listed for US only.
Power Relays are mercury-free to comply with increasing regulation and concern about mercury in schools
All L&L Kilns come with an on-off switch

Elements

The Quad element design improves element life by offering the largest element in the industry for top-loading craft kilns combined with L&L's patented hard ceramic element holders. It also improves distribution of the heat energy and allows for more varied placement of kiln shelves.

APM elements increase element life in difficult applications

Thermocouples

Type S Platinum Thermocouples are recommended for high fire applications

Pyrocil thermocouples are sensitive but limited to about 2200°F but offer greater sensitivity to temperature change and so may be appropriate in applications below 2200°F that require sensitivity.

Vents

The L&L Vent-Sure Kiln Vent is the most powerful downdraft kiln vent on the market today. That means you have more flexibility in the installation.

The Vent Control allows you to automatically control the operation of the Vent-Sure kiln vent with one of the outputs from the DynaTrol (or Genesis).

Kiln Furniture

Cone 10 Kiln wash is used to coat shelves to prevent sticking of glaze.

Kiln furniture kits are the recommended set of ceramic shelves, posts and kiln wash that go with each kiln model. These are for loading the work in the kiln.

These safety gloves are perfect for handling hot work when unloading a kiln.

Controls

The new Genesis control from Bartlett includes a touch screen interface and WIFI connectivity added to the proven software of the DynaTrol.

All power is switched off with a 50 amp power switch before the door can physically be opened. (Easy-Fire & School-Master Kilns only).

Control, monitor and record data for up to 10 kilns from your computer for a one-time price.

Power

This option helps protect your control from electrical noise

44" Wide x 44" Deep x 38" High
111 cm Wide x 111 cm Deep x 96 cm High
44" Wide x 44" Deep x 55" High
111 cm Wide x 111 cm Deep x 139 cm High
44" Wide x 44" Deep x 60" High
111 cm Wide x 111 cm Deep x 152 cm High
44" Wide x 44" Deep x 60" High
111 cm Wide x 111 cm Deep x 152 cm High
305 lbs (138 kg) + Kit 376 lbs (171 kg) + Vent 330 lbs (150 kg) + Kit + Vent 401 lbs (182 kg)
Skidded Carton with Foam-in-Place packaging
