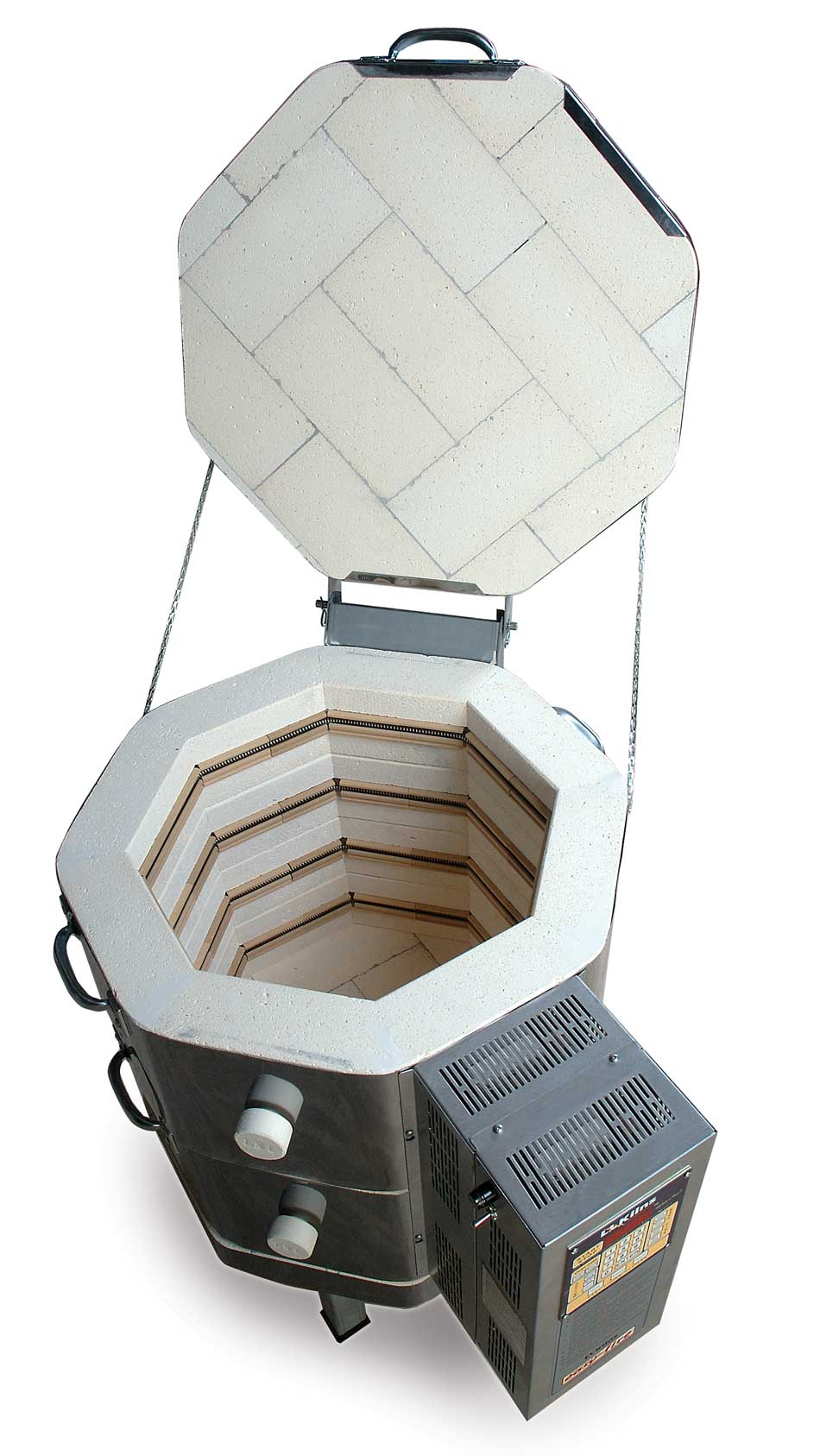

e18S-3 Easy-Fire Electric Ceramic Pottery Kilns
Click on image to enlarge
Furniture Kit
H-E-K18S/30 ($295.00)
One 15" Full Round Shelf and and Four 15" Half Round Shelves, Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, Heat Resistant Gloves and 5 pounds Cone 10 Kiln Wash
Features
Performance
Durability
Ease of Use
Support
Serviceability
Safety
Accessories
Elements & Power
Books
General
Control
Vent
Easy-Fire Automatic Kiln with with Multi-Program Zoned DynaTrol mounted in an easy-open piggy-back control panel, 3" brick
Basic Information
3" (76 mm) K23 Premium Firebrick
Top-Loading
Two 9" high sections
8 sides
2.5 cubic ft (71 Liters)
200 pounds (89 Kg)
16-1/2" Diam x 18" High
29" Wide x 30" Deep x 32" High
222.9 cm Wide x 76.2 cm Deep x 81.3 cm High
222.9 cm Wide x 76.2 cm Deep x 81.3 cm High
Description
Two 9” high sections stack on top of each other. The hinge and element connection box hold the entire kiln together as an integrated unit. The kiln is very easy to assemble and disassemble. All wires are marked or color coded and attach to pull-off terminal strips. More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Simple strong hinge with chain for door support
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Two total: one per section.
Download (1.26 MB, PDF)
Control Specifications
Two control zones with two separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on panel
All controls and components are mounted in a separate control panel that is piggy-backed to the element connection box. A layer of insulation and this separation helps keep the controls cool. The control panel and element box are hinged for easy access and maintenance. Control box can be easily removed for servicing. On/off switch and control fuse are included. More about Easy-Fire control panel.
Control box drops down perpendicular to kiln for easy access to wiring and controls. All electrical wires are color coded or numbered.
Part Number
Watts
Volts
Phase
Fuse Size
K-E-18S3/21
4980 W
208 V
Single Phase
30 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps23.9
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
- Wire Ga for Connection10 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$1,725.00
K-E-18S3/41
5267 W
220-230 V
Single Phase
30 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps23.9
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
- Wire Ga for Connection10 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for all markets except USA and EU
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$1,725.00
K-E-18S3/31
5737 W
240 V
Single Phase
30 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps23.9
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
- Wire Ga for Connection10 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for USA market only
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$1,725.00
K-E-18S3/52
5267 W
380-415 V
Three Phase (Wye)
20 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps12
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection10 Ga
- Branch Fusing
Certifications and Markets
- InternationalMade for all markets except USA and EU
- CE
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$1,725.00
36" Wide x 36" Deep x 38" High
91 cm Wide x 91 cm Deep x 96 cm High
91 cm Wide x 91 cm Deep x 96 cm High
36" Wide x 36" Deep x 55" High
91 cm Wide x 91 cm Deep x 139 cm High
91 cm Wide x 91 cm Deep x 139 cm High
36" Wide x 36" Deep x 60" High
91 cm Wide x 91 cm Deep x 152 cm High
91 cm Wide x 91 cm Deep x 152 cm High
36" Wide x 36" Deep x 60" High
91 cm Wide x 91 cm Deep x 152 cm High
91 cm Wide x 91 cm Deep x 152 cm High
208 lbs (94 kg)
+ Kit 256 lbs (116 kg)
+ Vent 233 lbs (106 kg)
+ Kit + Vent 281 lbs (127 kg)
Skidded Carton with Foam-in-Place packaging
